MALORY MLR-TF02 150W Low Voltage Landscape Lighting Transformer β 12Vβ15V Multi-Tap Outdoor Power Supply, Weatherproof
MALORY MLR-TF02 150W Low Voltage Landscape Lighting Transformer β 12Vβ15V Multi-Tap Outdoor Power Supply, Weatherproof - 150W / Transformer Only is backordered and will ship as soon as it is back in stock.
π Extra 6% Off Retail Prices Sitewide
π° 14% Off Orders Over $500
β
Automatic Discounts at Checkout
π Free Delivery in 3β5 Business Days
π CA & FL Orders Ship Within 24 Hours
β©οΈ 30-Day Hassle-Free Returns
π‘οΈ Lifetime Warranty
Couldn't load pickup availability
Highlights
Highlights
Safe & Powerful 150W Transformer
ETL-listed 300W low voltage transformer converts 120V AC household power to 12 -15V safe low-voltage output making it easier to reduce voltage drop in long cable run.

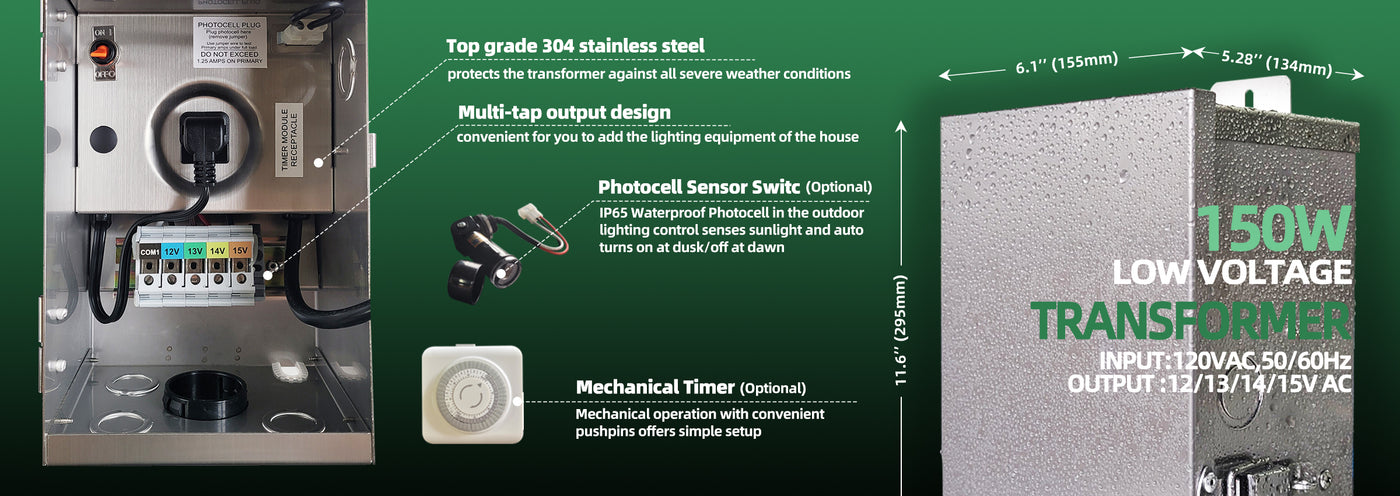

Durable 304 Stainless Steel Outdoor Housing

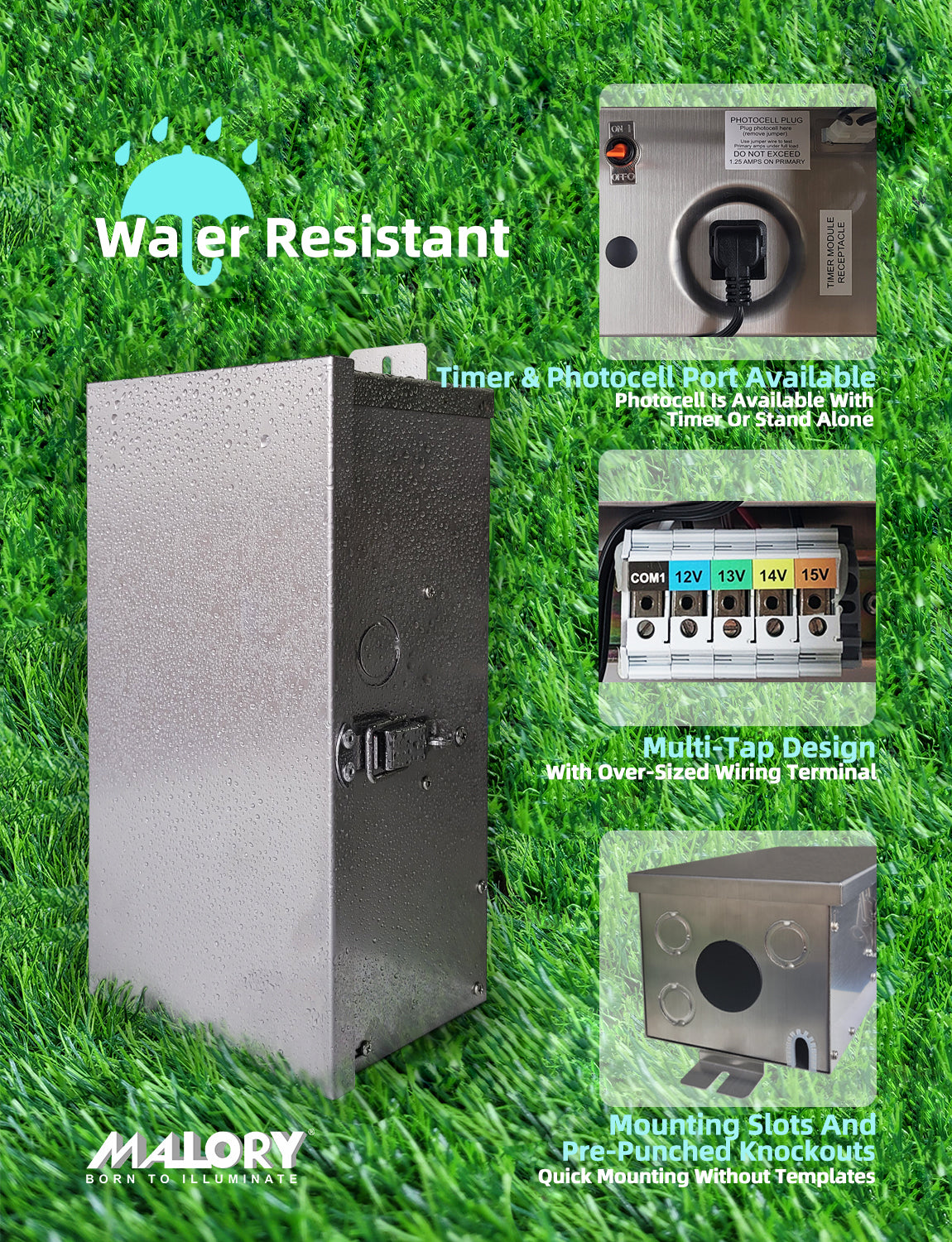

Built with a 304 stainless steel enclosure to help resist outdoor weather, corrosion, rain, snow, and heat. The lockable latch adds extra safety, while the removable bottom plate with pre-punched knockouts provides easier access for wiring and installation.
Toroidal Core with Circuit Protection
Designed with a fully encapsulated toroidal core for stable low-voltage output and efficient performance. The built-in 25A magnetic circuit breaker helps protect the system from overload and short-circuit issues.
Timer & Photocell Control Ready
Comes with a mechanical timer and photocell sensor for automatic on/off control by schedule or daylight. It can also be used with a compatible smart plug for more convenient remote control.
Built for Outdoor Landscape Lighting Applications
Ideal for low voltage landscape lighting systems, including spotlights, path lights, well lights, deck lights, garden lights, fountain lights, pool-area lighting, and other outdoor decorative lighting setups.
Description
Description
The MALORY MLR-TF02 150W Low Voltage Landscape Lighting Transformer delivers safe, dependable power for medium-sized 12V landscape lighting installations. It converts standard 120V AC household power into 12V/13V/14V/15V multi-tap low-voltage output, helping compensate for voltage drop on longer cable runs while providing consistent performance across your lighting system.
Ideal for medium-sized residential landscape lighting systems. It provides ample capacity to power multiple spotlights, path lights, well lights, deck lights, and other 12V outdoor fixtures while leaving room for future system expansion.
Specification
Specification
Material: 304 Stainless Steel
Power Capacity: 150W
Input Voltage: 120V AC
Output Voltage: 12V / 13V / 14V / 15V AC
Output Terminals: Single COM
Core Type: Fully Encapsulated Toroidal Core
Circuit Protection: 25A Magnetic Circuit Breaker
Weather Resistance: IP65 Rated Outdoor Housing
Lead Wire: 6-Foot 3 Γ 18AWG Premium Copper Wire
Certification: ETL Listed

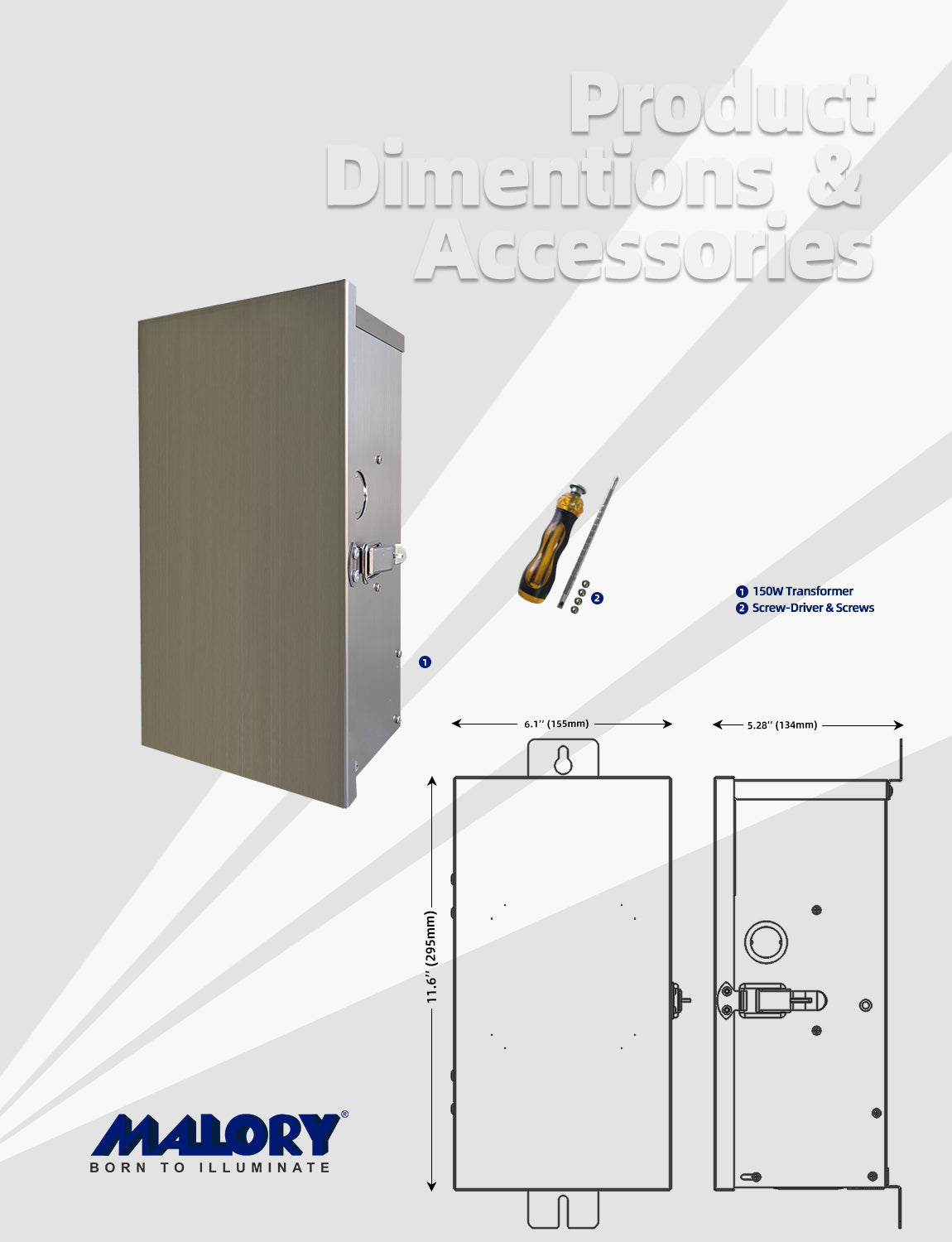

Dimensions: 5.28"D Γ 6.1"W Γ 11.6"H
Weight: 11 lb
Optional Accessories: Mechanical Timer & Photocell Sensor
MALORY MLR-TF02 150W Low Voltage Landscape Lighting Transformer β 1...
About MLR-TF02
Malory MLR-TF02 150W Multi Tap Landscape Lighting Transformer FAQ
01 What types of landscape lighting projects is the 150W transformer designed for?
The MALORY MLR-T02 is designed for small residential landscape lighting projects, including front yards, garden pathways, entryways, patios, and backyard accent lighting. Its compact design and 150W capacity make it a practical choice for homeowners installing a modest number of low-voltage LED fixtures.
02 How many landscape lights can a 150W transformer power?
The MLR-T02 supports up to 150W of total lighting load. For reliable long-term operation, we recommend keeping the connected load at or below 120W (80% capacity). For example, it can power up to 24 LED spotlights rated at 5W each, or a combination of spotlights, path lights, and other fixtures within the recommended capacity.
03 What voltage outputs does the MLR-TF02 provide?
The transformer converts standard 120V AC household power into 12V, 13V, 14V, or 15V AC outputs. The multi-tap design allows you to select the appropriate voltage based on cable length, wire gauge, connected wattage, and fixture requirements.
04 What is the purpose of the 13V, 14V, and 15V voltage taps?
Higher voltage taps help compensate for voltage drop along longer cable runs. For example, a short cable run may work well on the 12V tap, while a longer run may require a higher output. Always verify that the voltage reaching each fixture remains within its rated operating range.
05 Can I connect multiple landscape lighting cable runs to this transformer?
Yes. Although the MLR-TF02 features a single COM terminal, its oversized terminal block supports multiple low-voltage cable connections. Make sure the combined load does not exceed 150W, the wiring connections are properly sized, and voltage drop is considered for each run.
06 Can I use this transformer to replace an existing landscape lighting transformer?
Yes. The MLR-T02 can replace an existing low-voltage AC landscape lighting transformer, provided your fixtures are compatible and the total connected load is within its 150W capacity. Check the existing cable condition, fixture voltage requirements, and overall system wattage before installation.
07 What is the difference between the 150W, 300W, and 600W landscape lighting transformers?
The main difference is power capacity. The 150W model is suited to smaller residential projects, the 300W model provides additional capacity for larger home installations, and the 600W model is better suited to extensive lighting systems with multiple cable runs. We recommend selecting a transformer that can accommodate your total fixture wattage while leaving room for future expansion.
08 Does the transformer provide overload and short-circuit protection?
Yes. The MLR-T02 features a built-in 25A magnetic circuit breaker to help protect the low-voltage lighting circuit against overloads and short circuits. If the breaker trips, identify and correct the electrical issue before resetting it.
-
