MALORY 300W Smart Wi-Fi Low Voltage Landscape Transformer, 3-Zone 12V/13V/15V AC Weatherproof Stainless Steel Power Pack

Safe & Powerful 300W Transformer

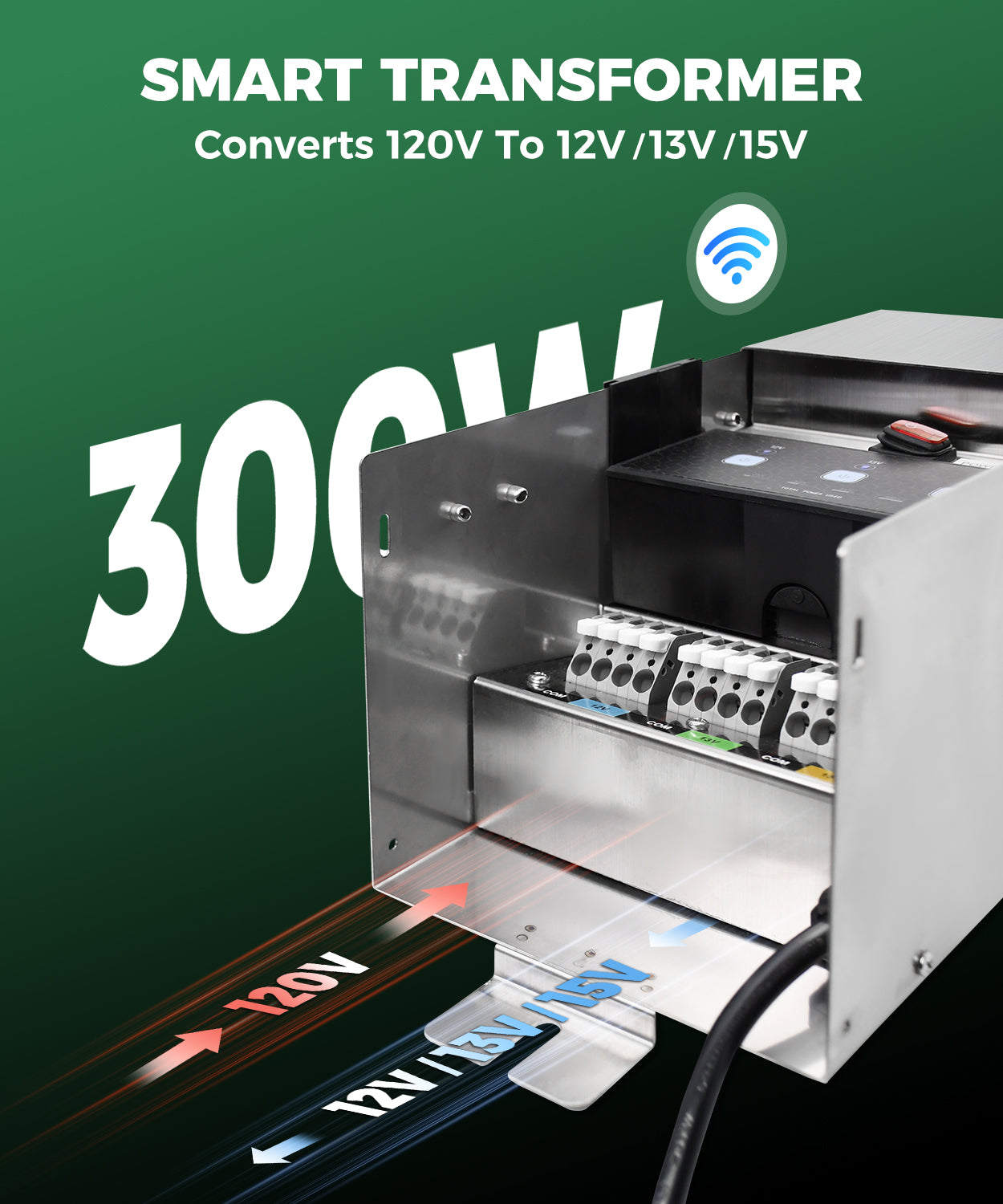

ETL-listed 300W smart low-voltage transformer converts 120V AC household power to dedicated 12V, 13V, and 15V AC outputs for outdoor landscape lighting. The higher-voltage outputs can help compensate for voltage drop on longer cable runs when properly designed.

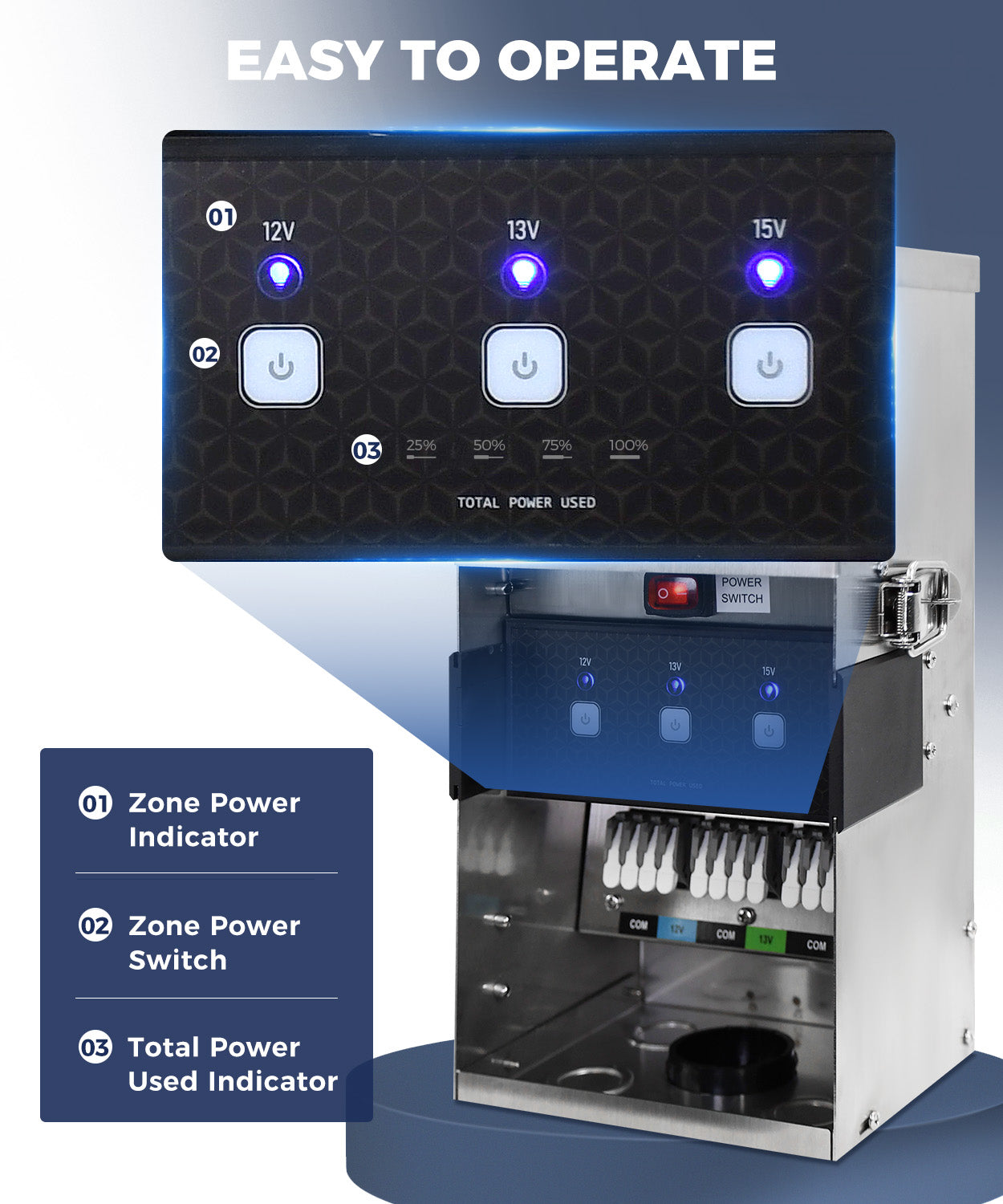

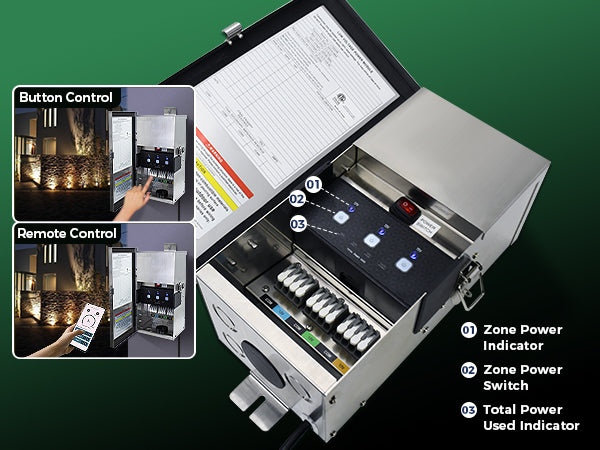

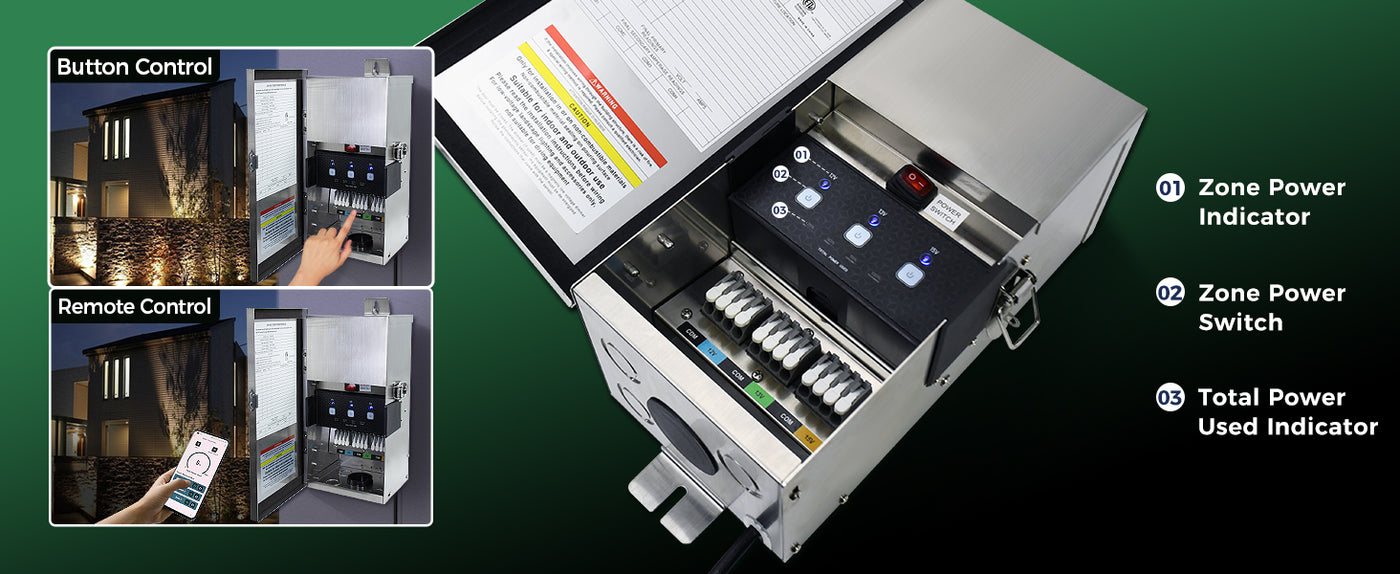

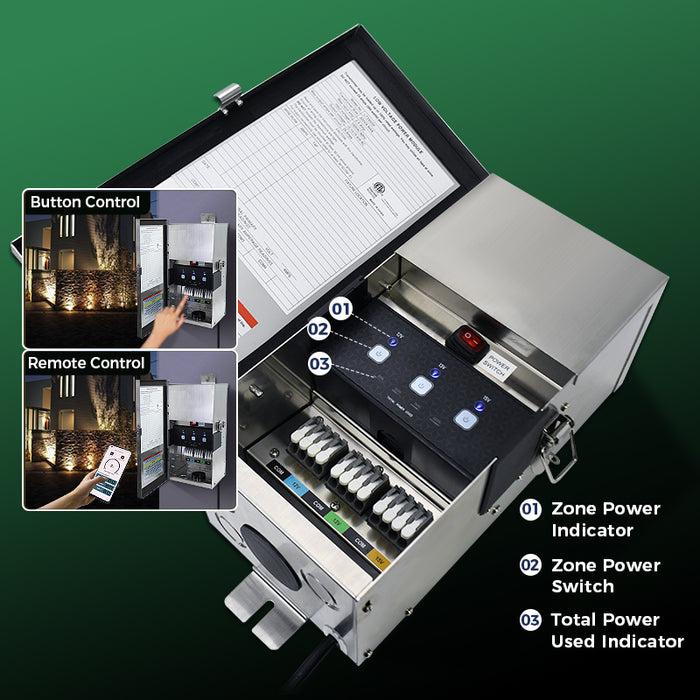

3 Independent Control Zones, Shared 300W Capacity

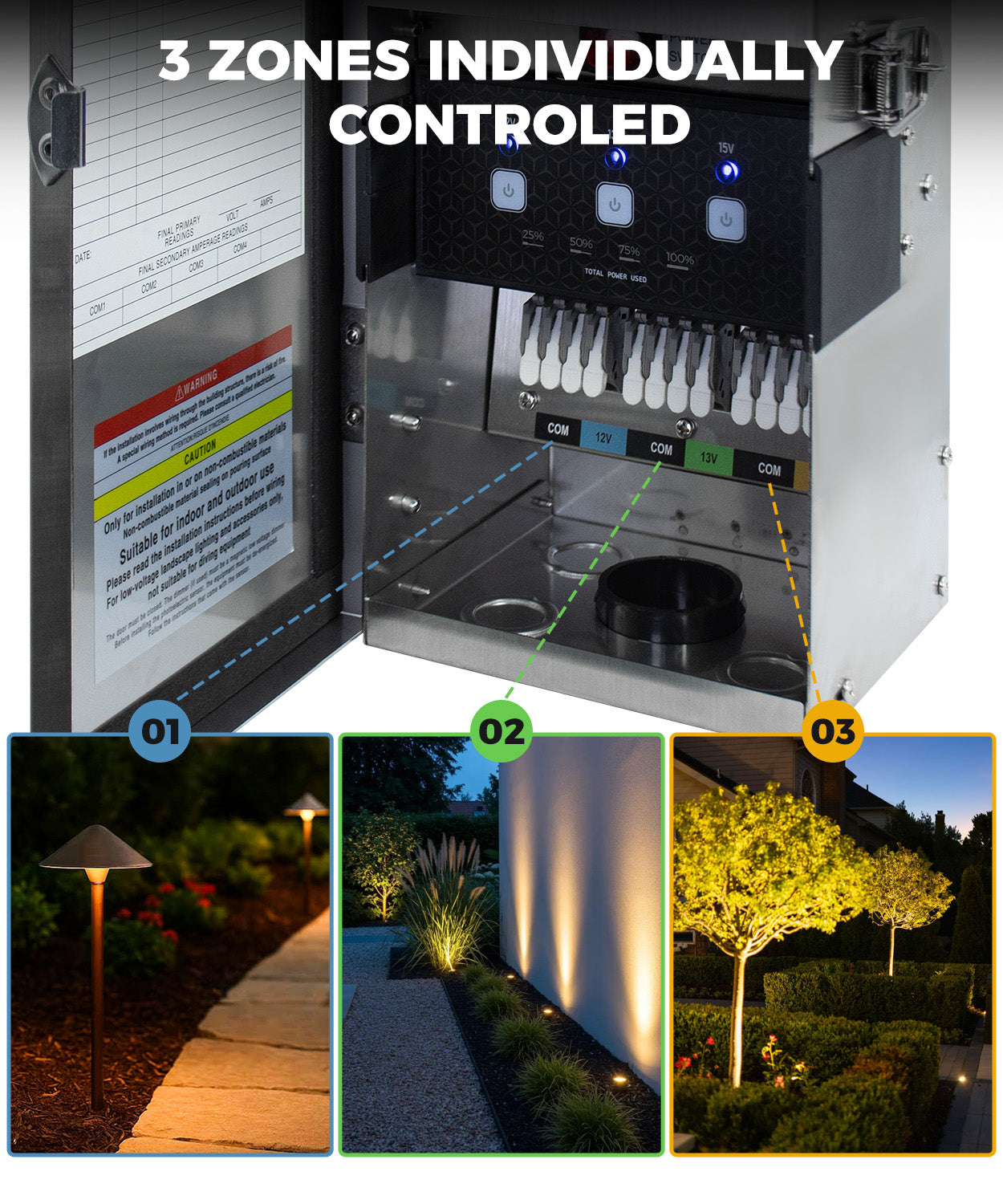

The transformer provides three independently controlled zones with dedicated voltage outputs: 12V, 13V, and 15V. Each zone includes two COM connection terminals and two matching voltage connection terminals, allowing up to two separate cable runs per zone and up to six direct cable runs total.

All three zones share the transformer’s total 300W capacity, with no fixed wattage limit assigned to an individual zone. Load can be distributed among the three zones as needed. For recommended operating headroom, keep the combined connected lighting load at approximately 240W or less.

Smart App Control

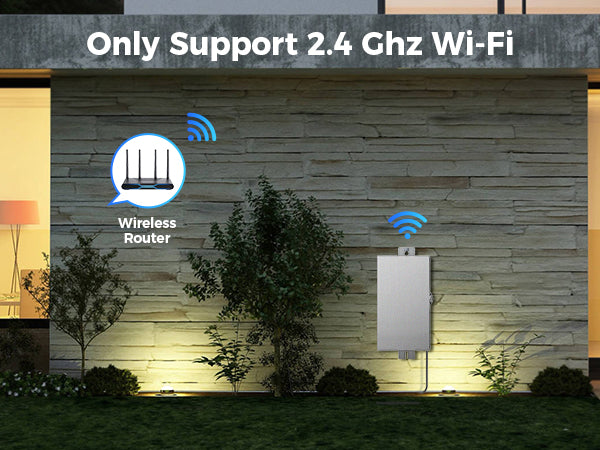

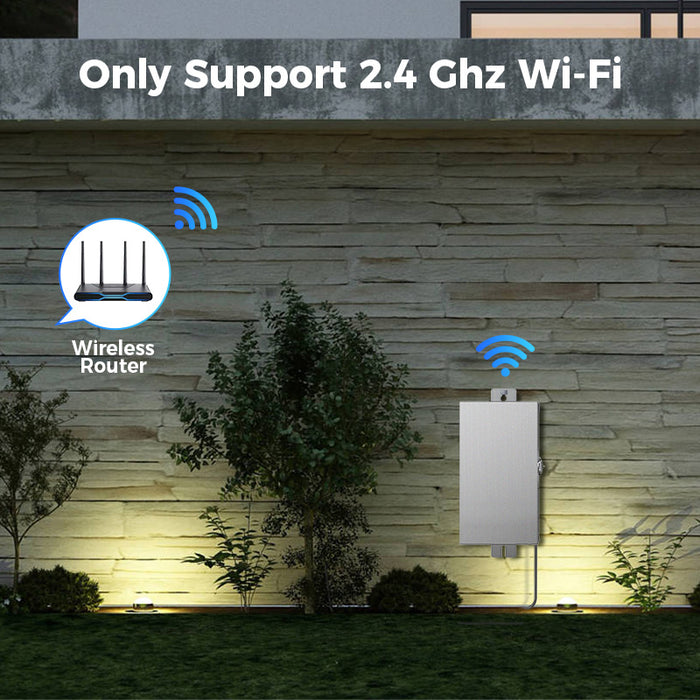

Control each lighting zone independently through the Tuya Smart or Smart Life app using a 2.4GHz Wi-Fi network. Turn zones on or off remotely and manage different outdoor lighting areas directly from your smartphone.

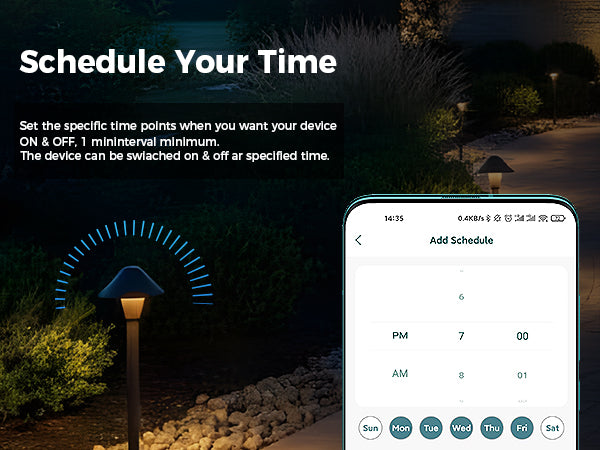

Astronomical Timer & Scheduling

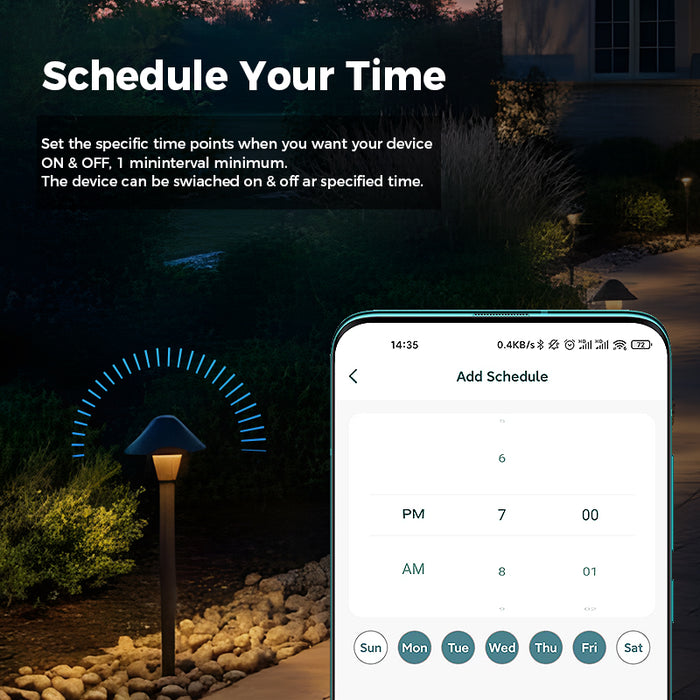

Create customized on/off schedules or use local sunrise and sunset times for automatic operation. Each zone can be managed independently to suit different landscape lighting areas and operating schedules.

Built for Outdoor Landscape Lighting
Designed for 12V low-voltage landscape lighting applications including spotlights, path lights, well lights, deck lights, garden lights, and other outdoor fixtures.

The MLR-TF03S 300W Smart Low-Voltage Transformer converts 120V household power to 12V, 13V, or 15V AC for outdoor landscape lighting. Its three independently controlled zones allow you to manage separate lighting areas and select the appropriate output voltage for each zone.

Unlike transformers with a fixed wattage limit for each zone, the MLR-TF03S allows the three zones to share the total available power. This flexible load distribution lets you allocate more capacity to the lighting zone that needs it most, depending on the number of fixtures, cable length, and system layout. For safe and efficient operation, the combined connected load across all three zones should not exceed 240W, or 80% of the transformer's 300W rated capacity.

Connect through the Tuya Smart or Smart Life app using a 2.4GHz Wi-Fi network to control each zone independently, create schedules, or automate operation according to local sunrise and sunset times.

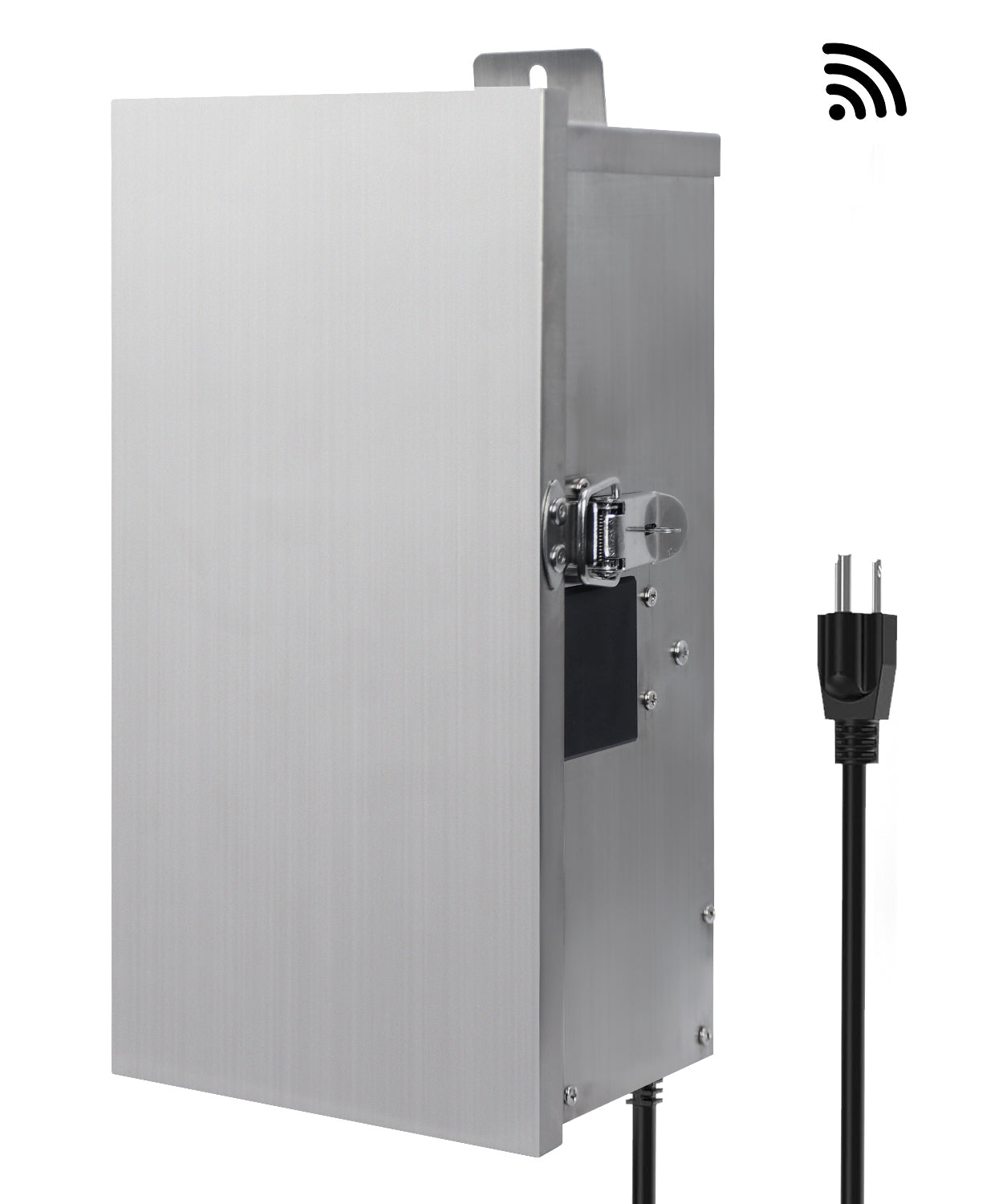

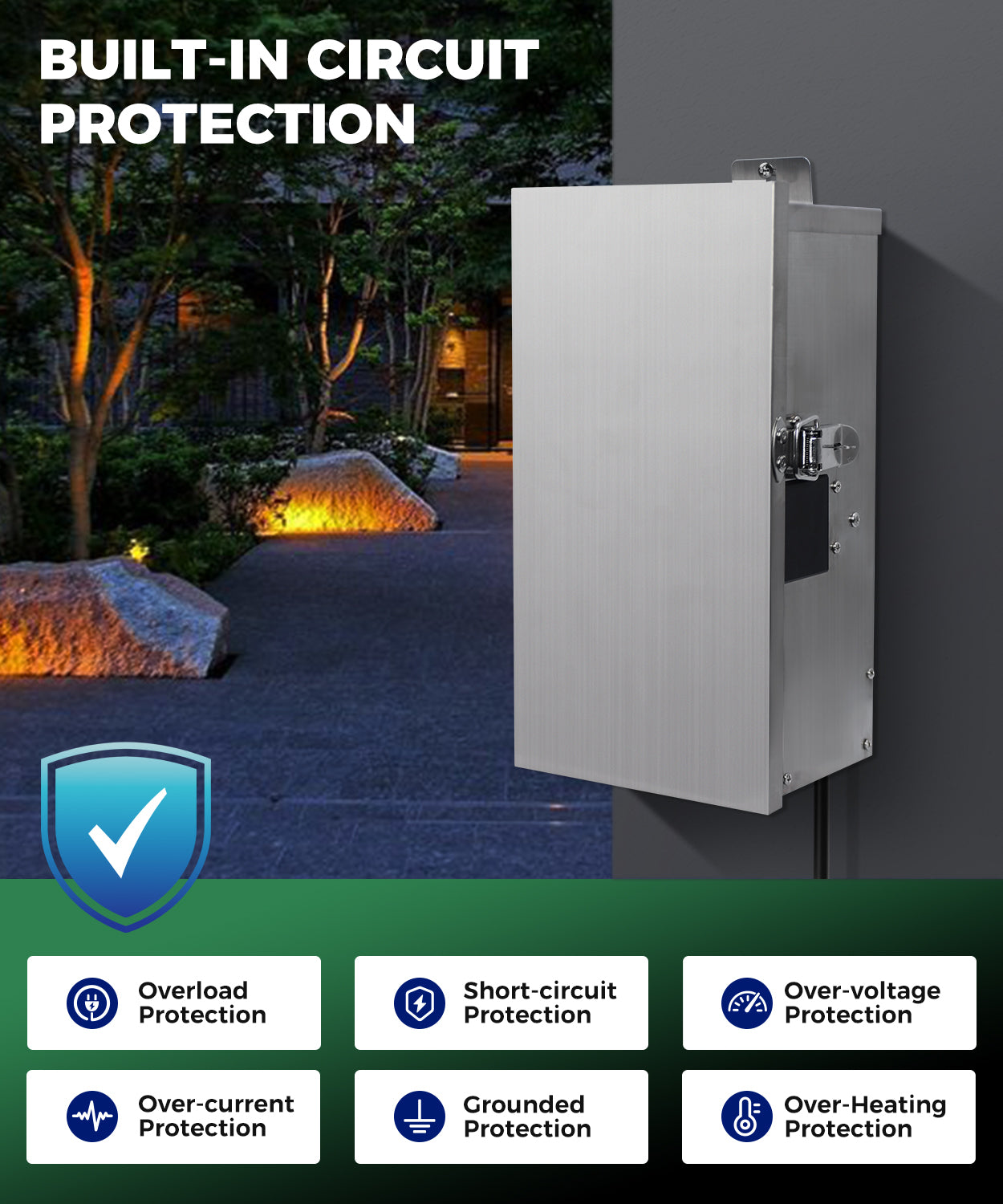

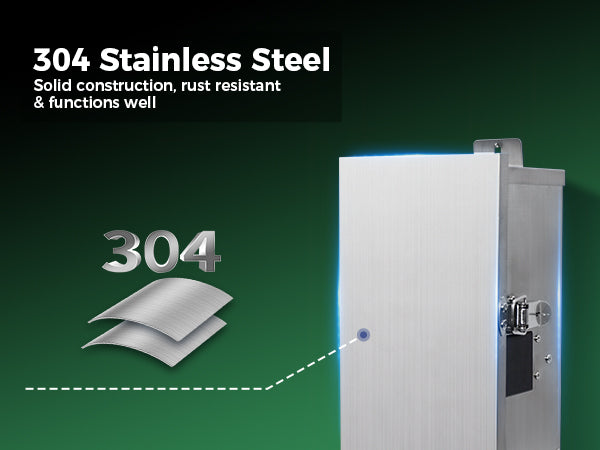

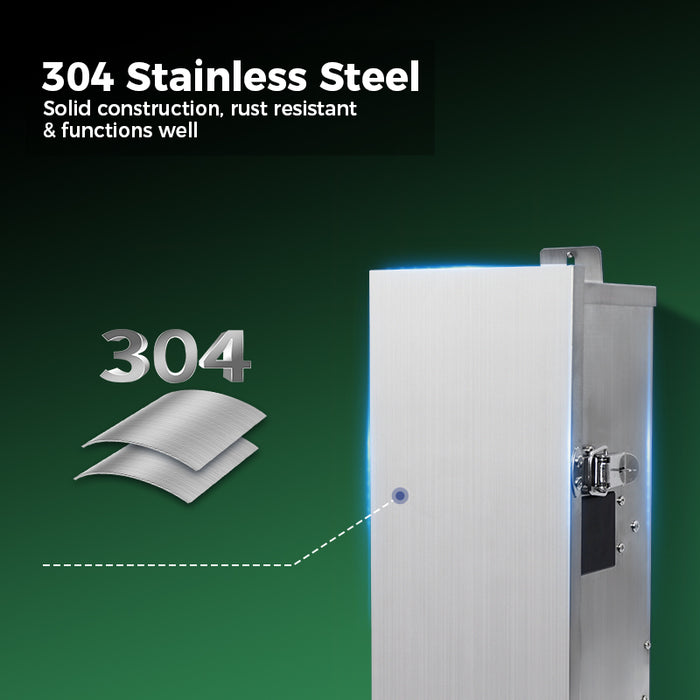

The ETL-listed transformer features a durable 304 stainless steel enclosure, a fully encapsulated toroidal core, and built-in overcurrent and overload protection for dependable outdoor performance.

Power Capacity: 300W
Input Voltage: 120V AC
Zone: Three Independent control zones
Output Voltage: 12V / 13V / 15V AC
Output Terminals: Each voltage output has one dedicated COM terminal: 12V + COM, 13V + COM, and 15V + COM
Core Type: Fully Encapsulated Toroidal Core
Circuit Protection: 25A Magnetic Circuit Breaker
Control: APP
Weather Resistance: IP65 Rated Outdoor
Housing: 304 Stainelss steel
Lead Wire: 6-Foot 3 × 18AWG Premium Copper Wire
Certification: ETL Listed

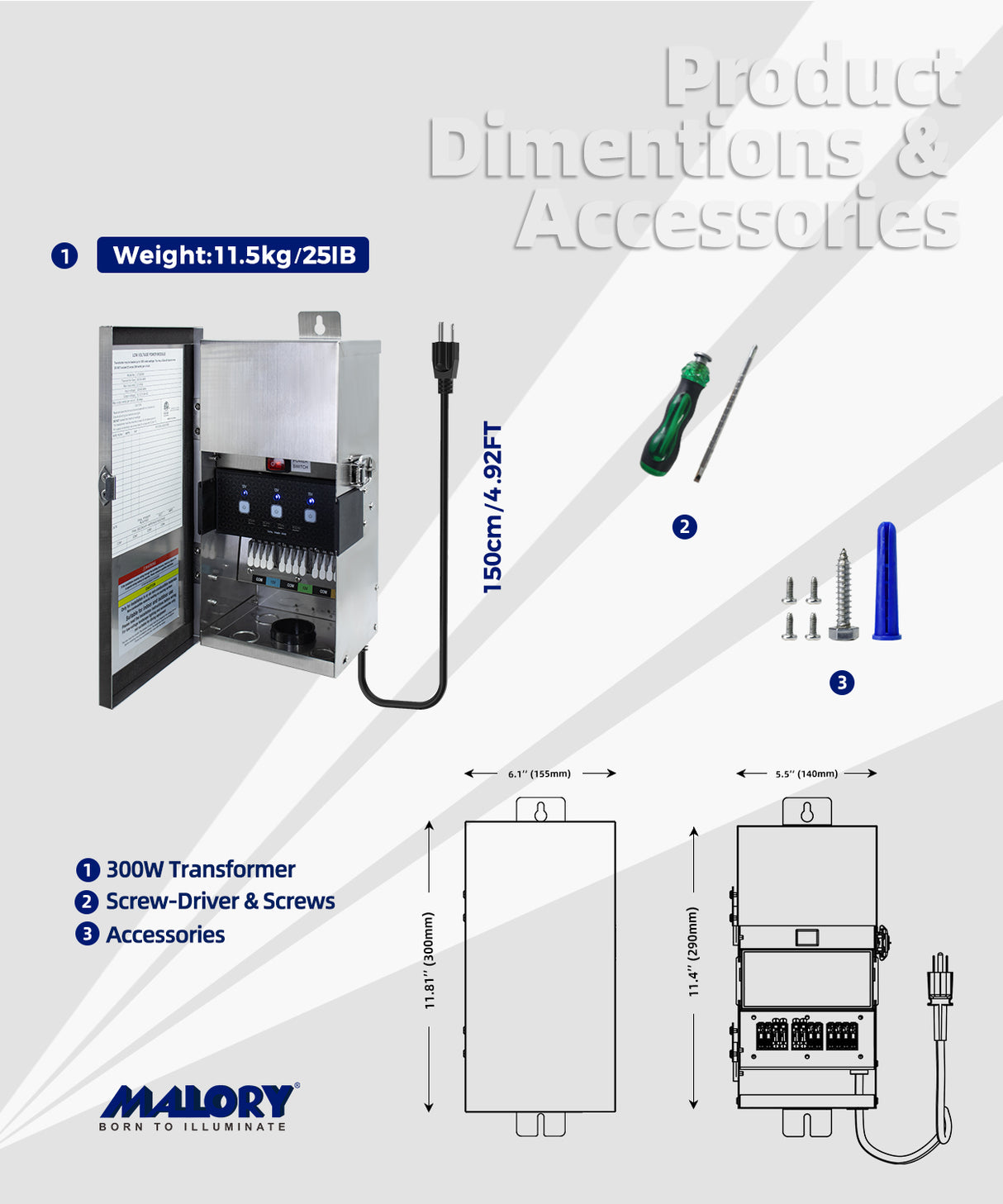

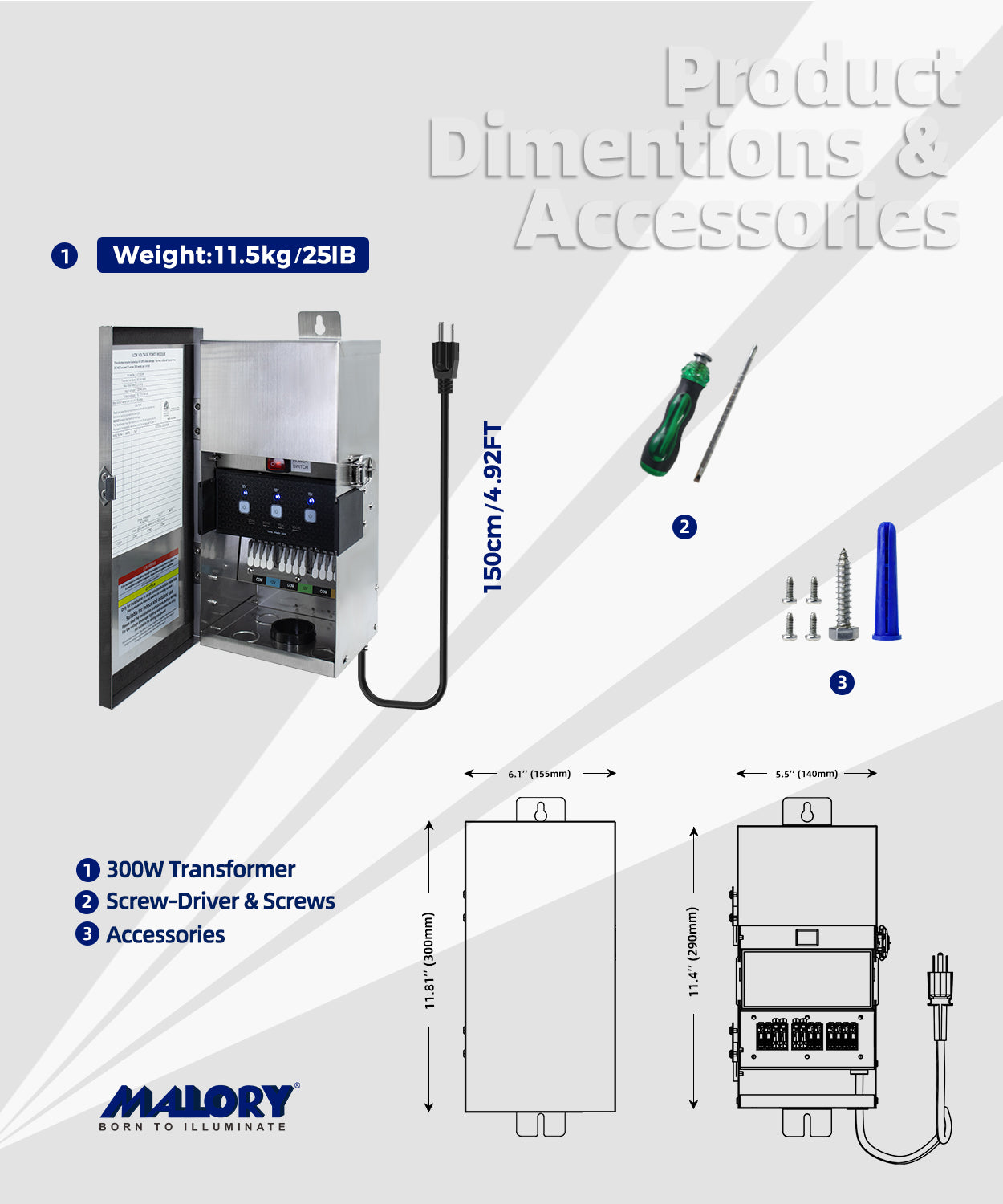

Dimensions: 5.3"D × 6.1"W × 11.8"H
Weight: 25.4 lb
