MALORY MLR-G03 Full Die-Cast Brass In-Ground Well Light, 12V Low Voltage Landscape Lighting
MALORY MLR-G03 Full Die-Cast Brass In-Ground Well Light, 12V Low Voltage Landscape Lighting - Bronze / With Bulb / 1-pack is backordered and will ship as soon as it is back in stock.
👉 Extra 6% Off Retail Prices Sitewide
💰 14% Off Orders Over $500
✅ Automatic Discounts at Checkout
🚚 Free Delivery in 3–5 Business Days
📍 CA & FL Orders Ship Within 24 Hours
↩️ 30-Day Hassle-Free Returns
🛡️ Lifetime Warranty on Die-Cast Brass Fixtures
Couldn't load pickup availability
Highlights
Highlights

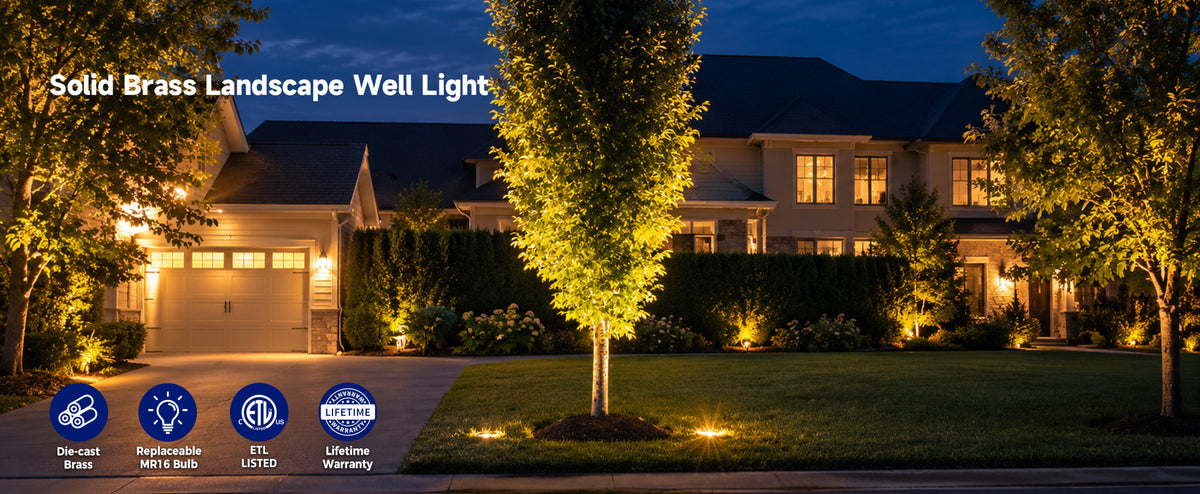

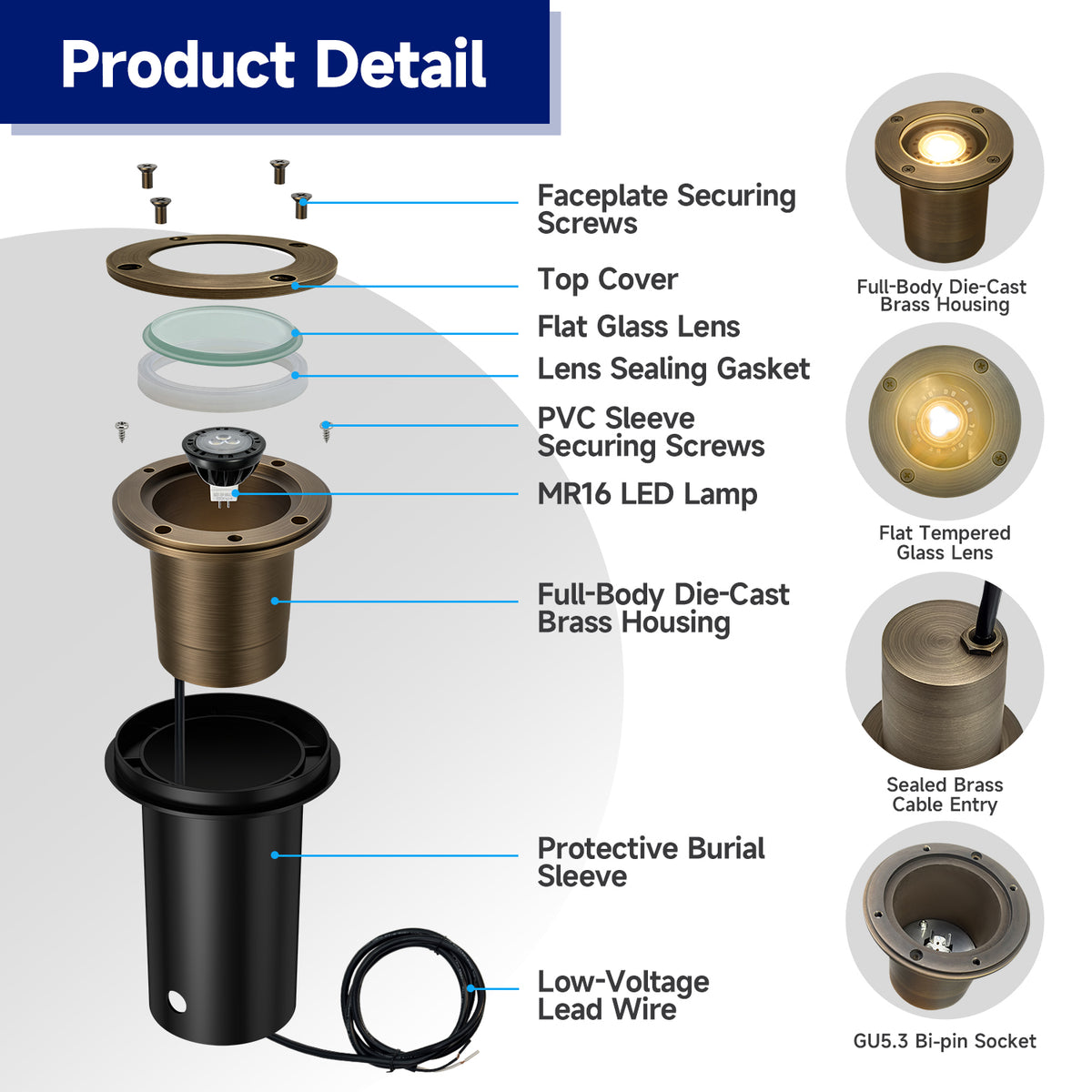

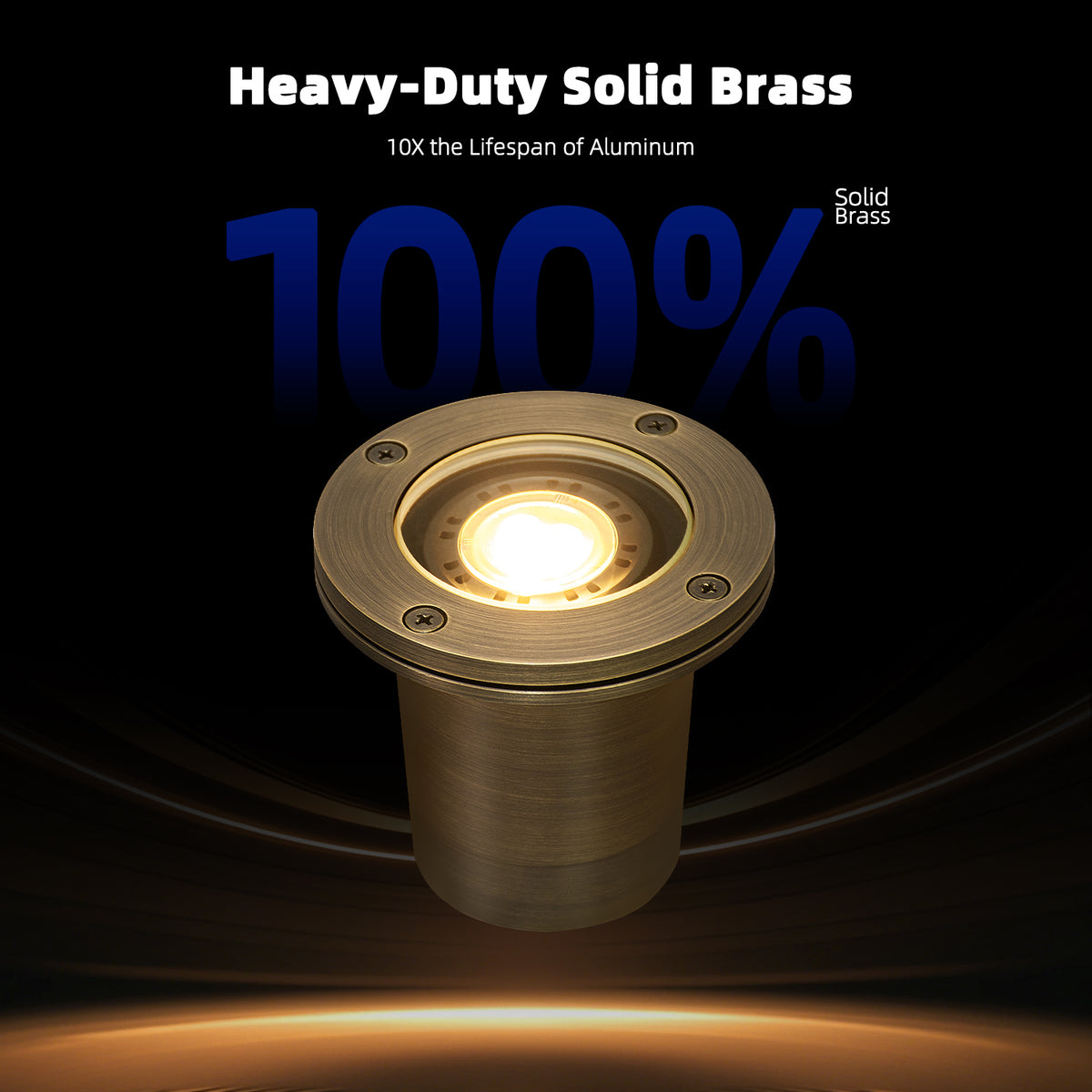

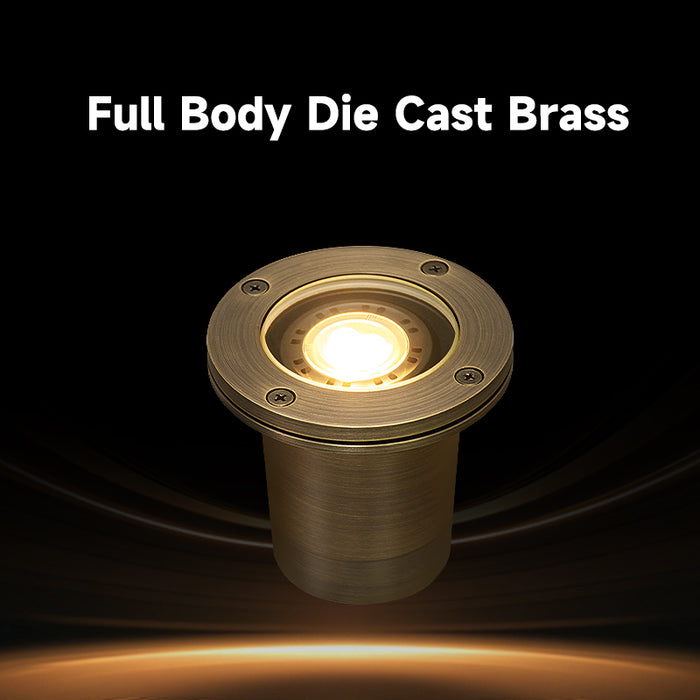

Full-Body Die-Cast Brass Construction
Unlike well lights that use a brass top with a PVC burial housing, the MLR-G03 features a full die-cast brass body for a more substantial, premium construction. The solid brass housing offers excellent durability for long-term in-ground landscape installations.
Open Flat Top for Strong Uplighting

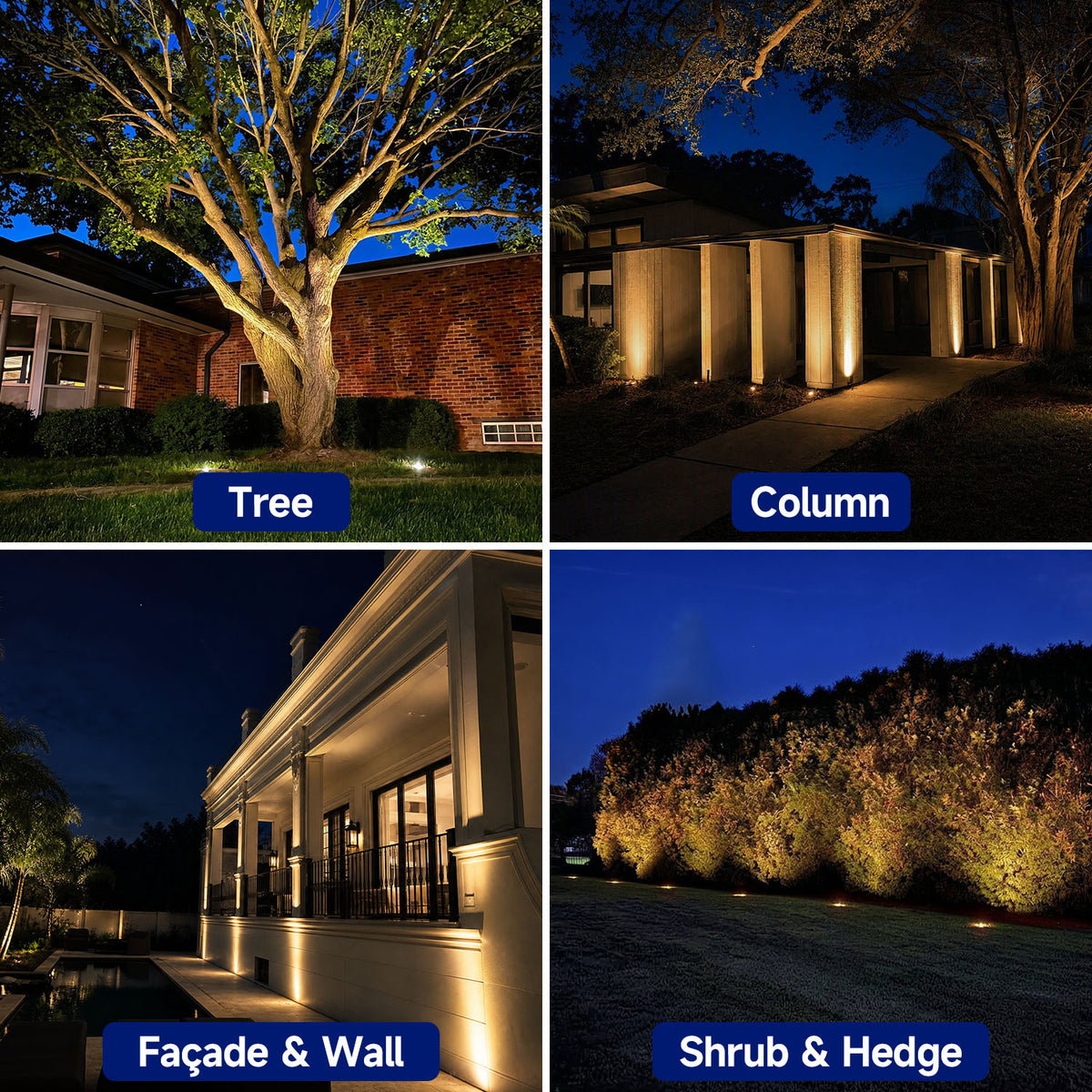

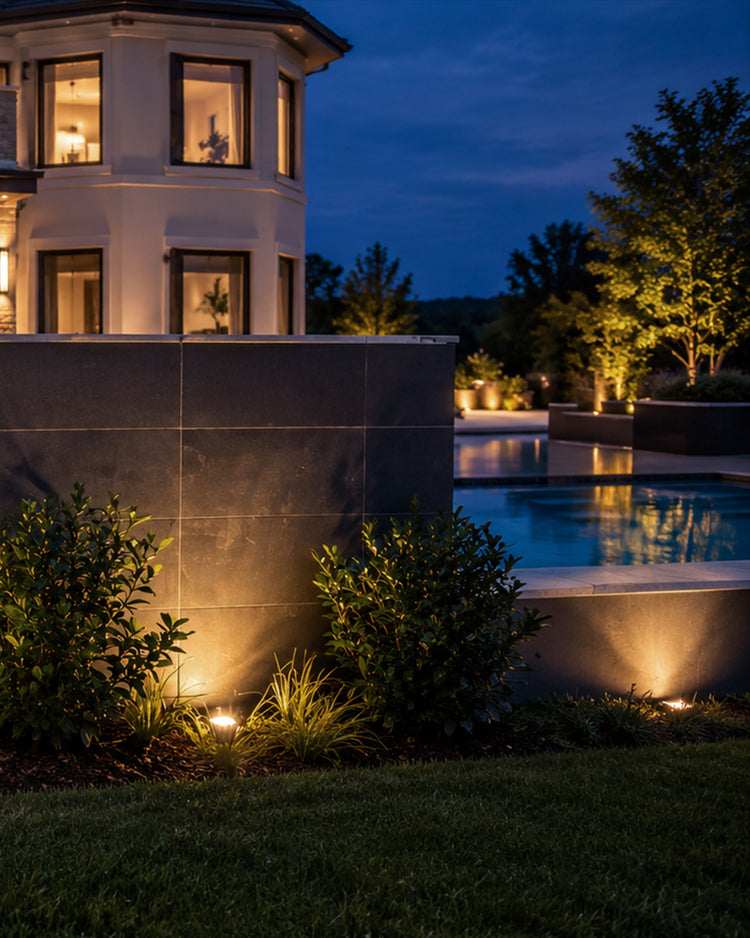

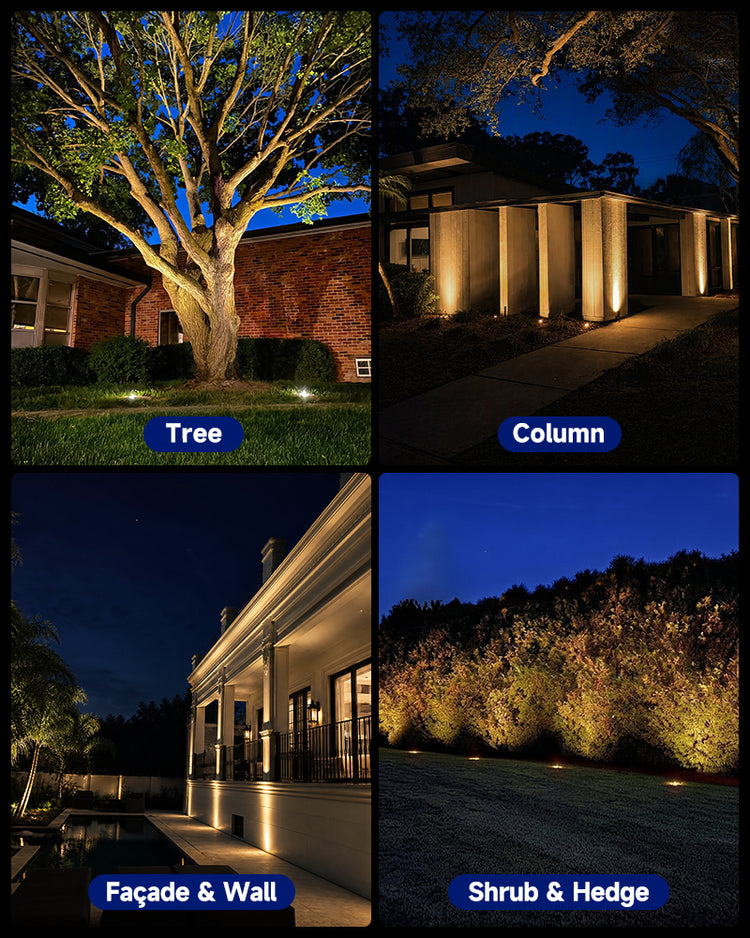

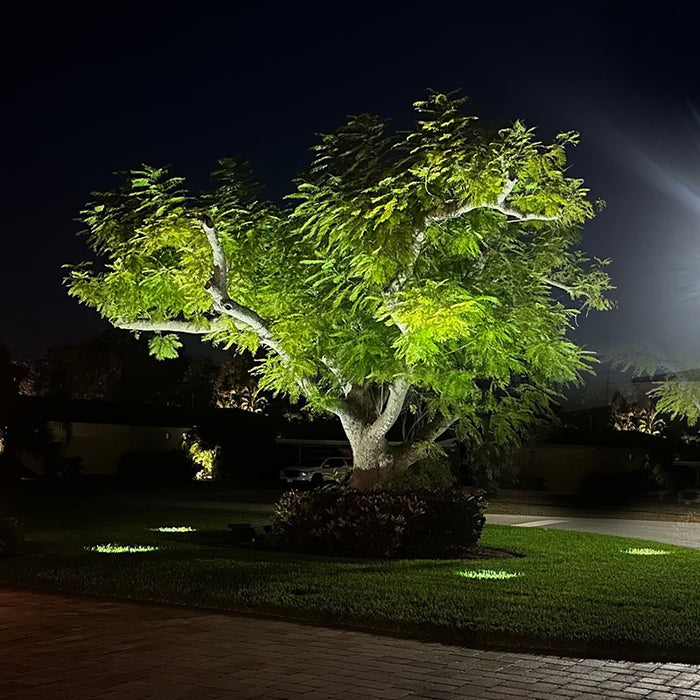

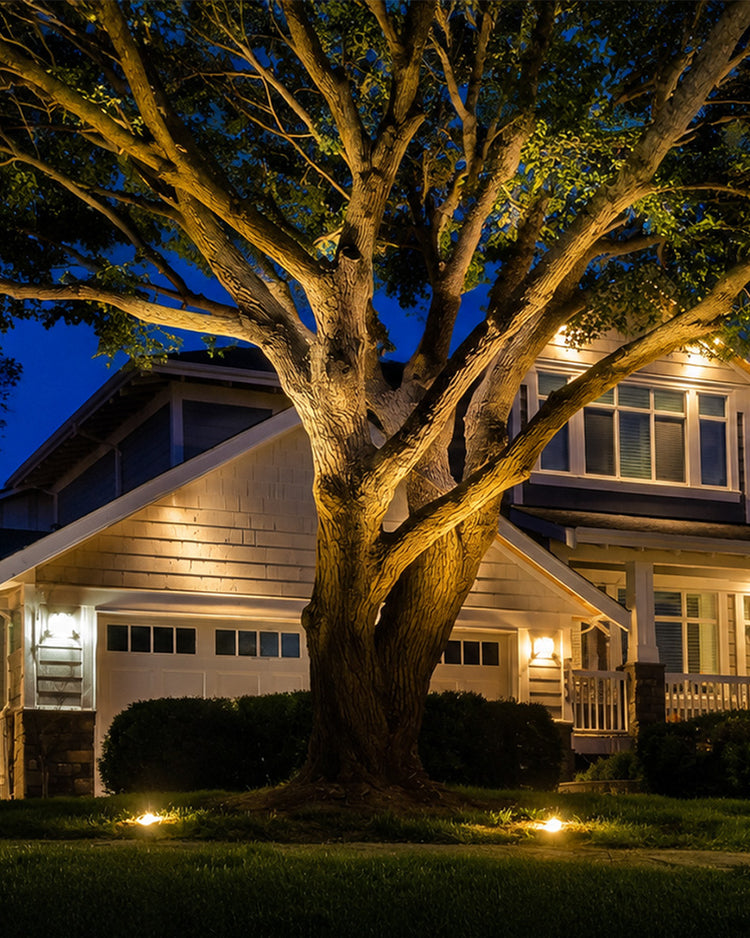

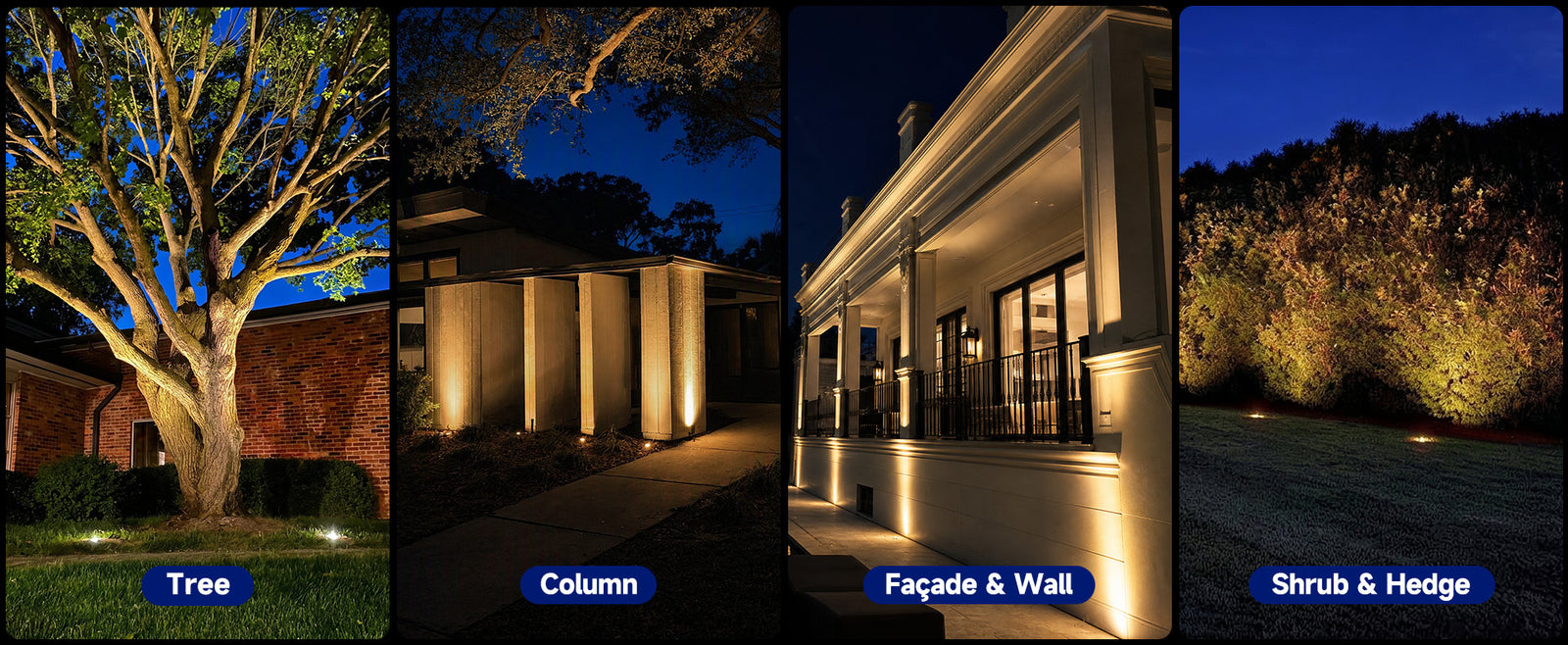

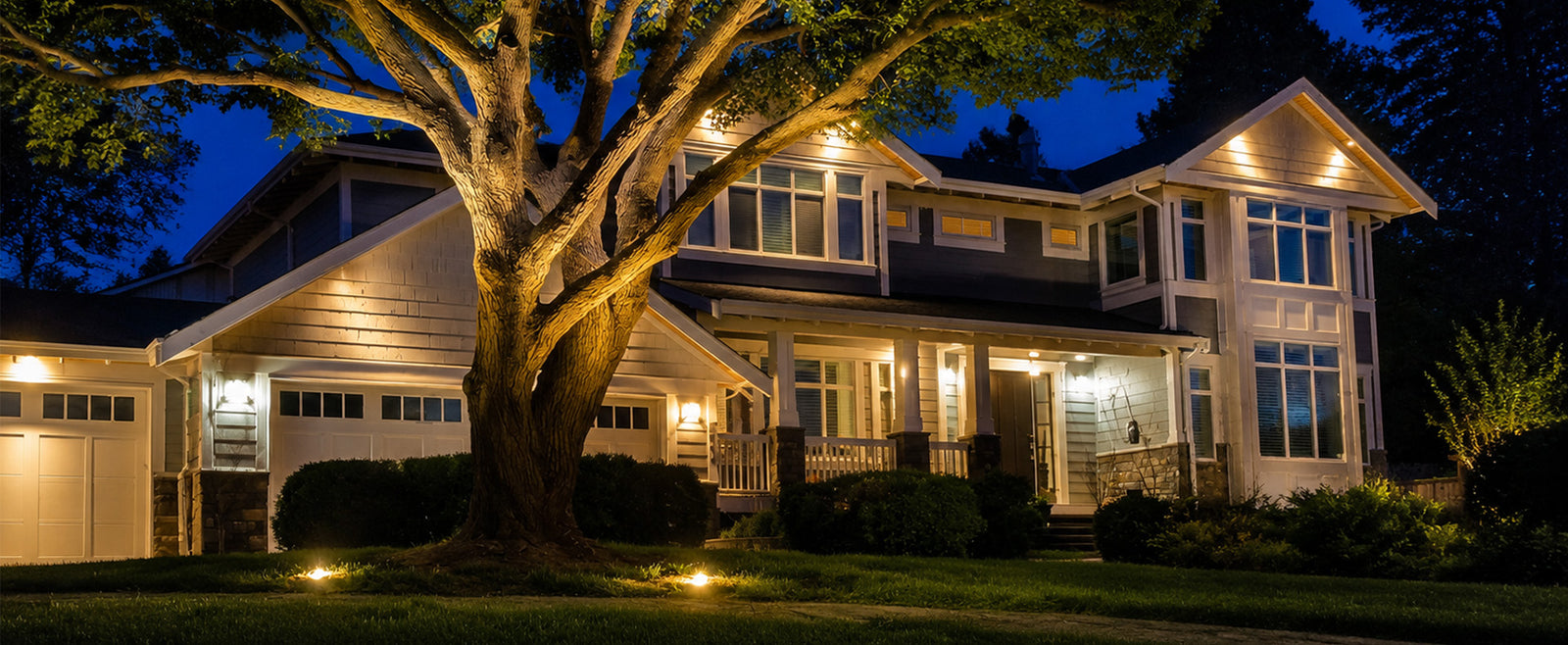

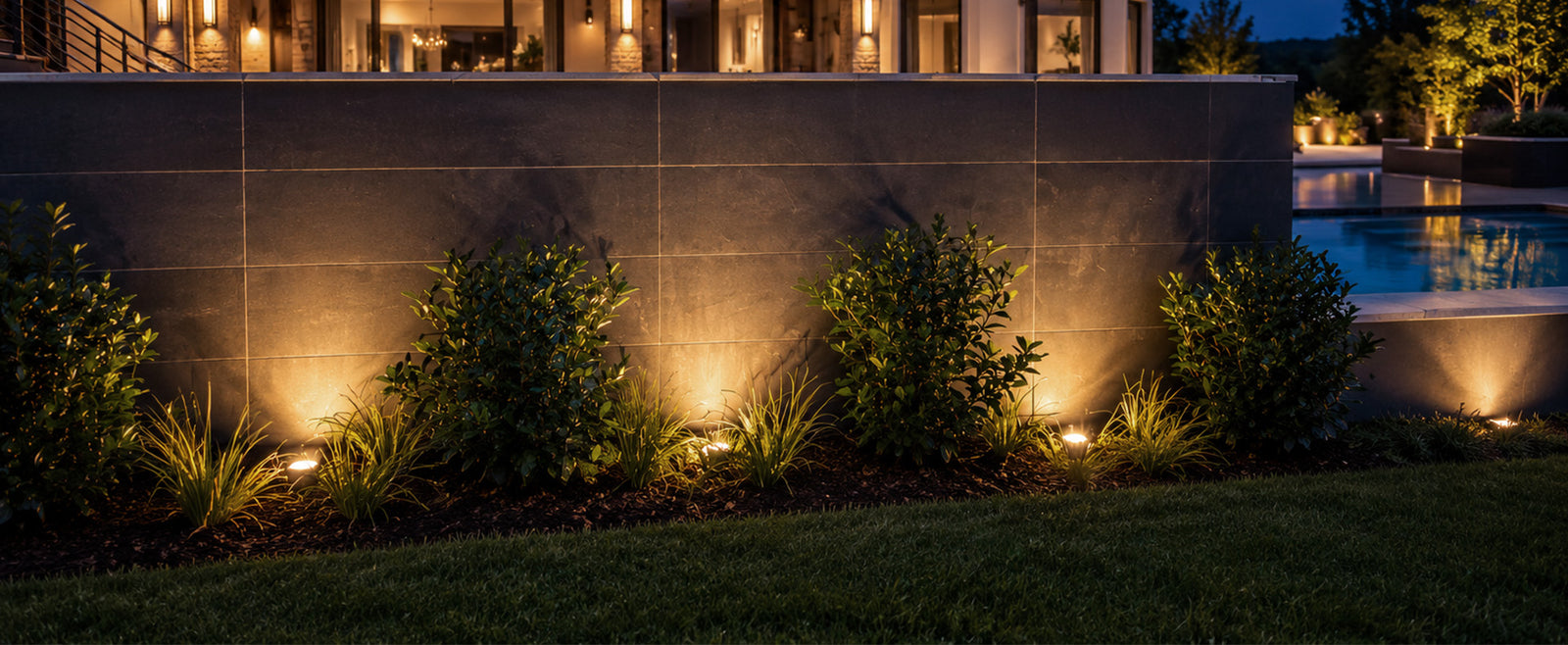

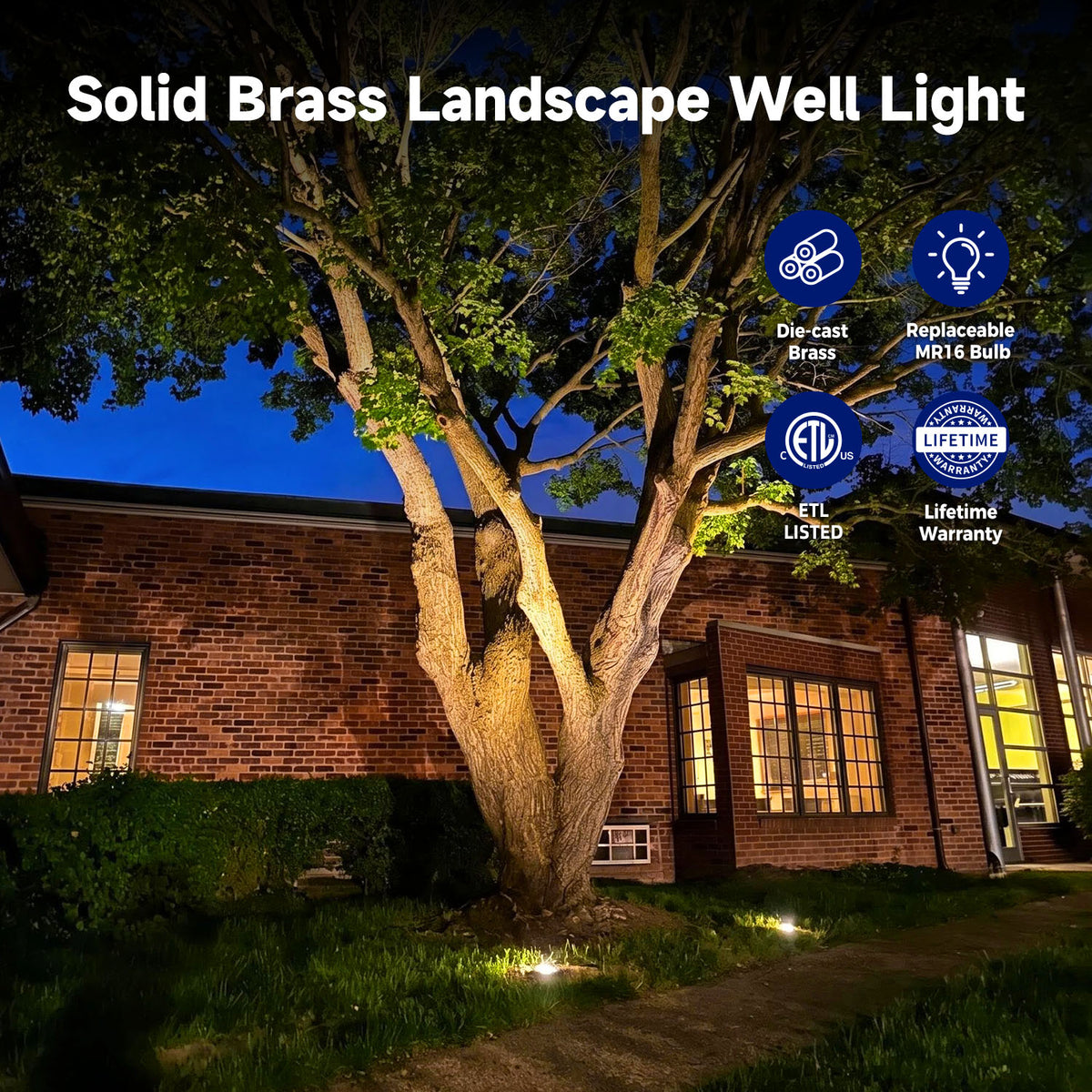

The open flat-top design allows the MR16 beam to project directly upward with minimal obstruction, making the G03 well suited for highlighting trees, columns, walls, architectural details, and other vertical landscape features.
Adjustable MR16 for Flexible Beam Control

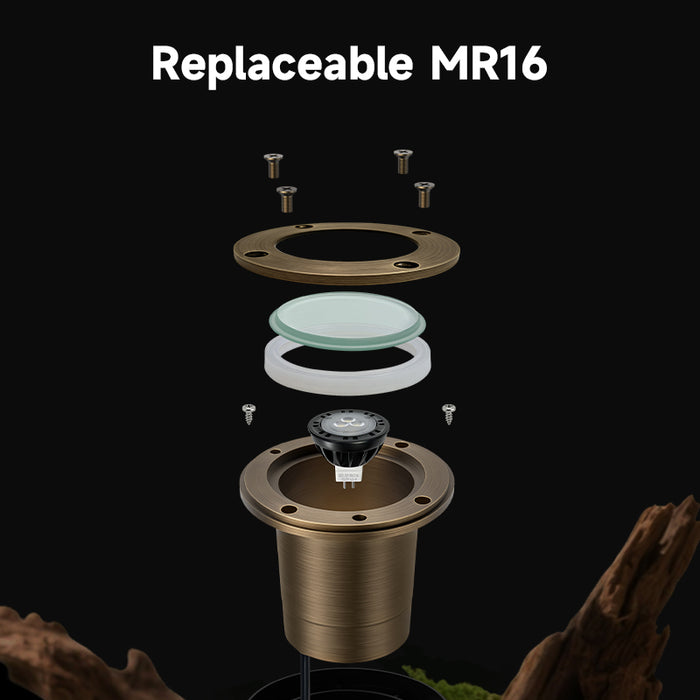

The adjustable GU5.3 bi-pin socket accepts replaceable MR16 lamps, allowing you to select the wattage, color temperature, and beam angle that best match the project. The socket can also be adjusted to fine-tune the aiming direction.
IP65 Outdoor Protection
Designed for in-ground outdoor installation, the MLR-G03 is rated IP65 to help protect the fixture against rain, snow, frost, heat, and everyday landscape conditions.
9–17V AC/DC Low-Voltage Compatibility
The fixture operates on 9–17V AC/DC and integrates easily with standard 12V low-voltage landscape lighting systems.
Backed by a Lifetime Warranty
MALORY die-cast brass fixtures are backed by a lifetime warranty for added confidence in long-term outdoor landscape lighting projects.
Description
Description

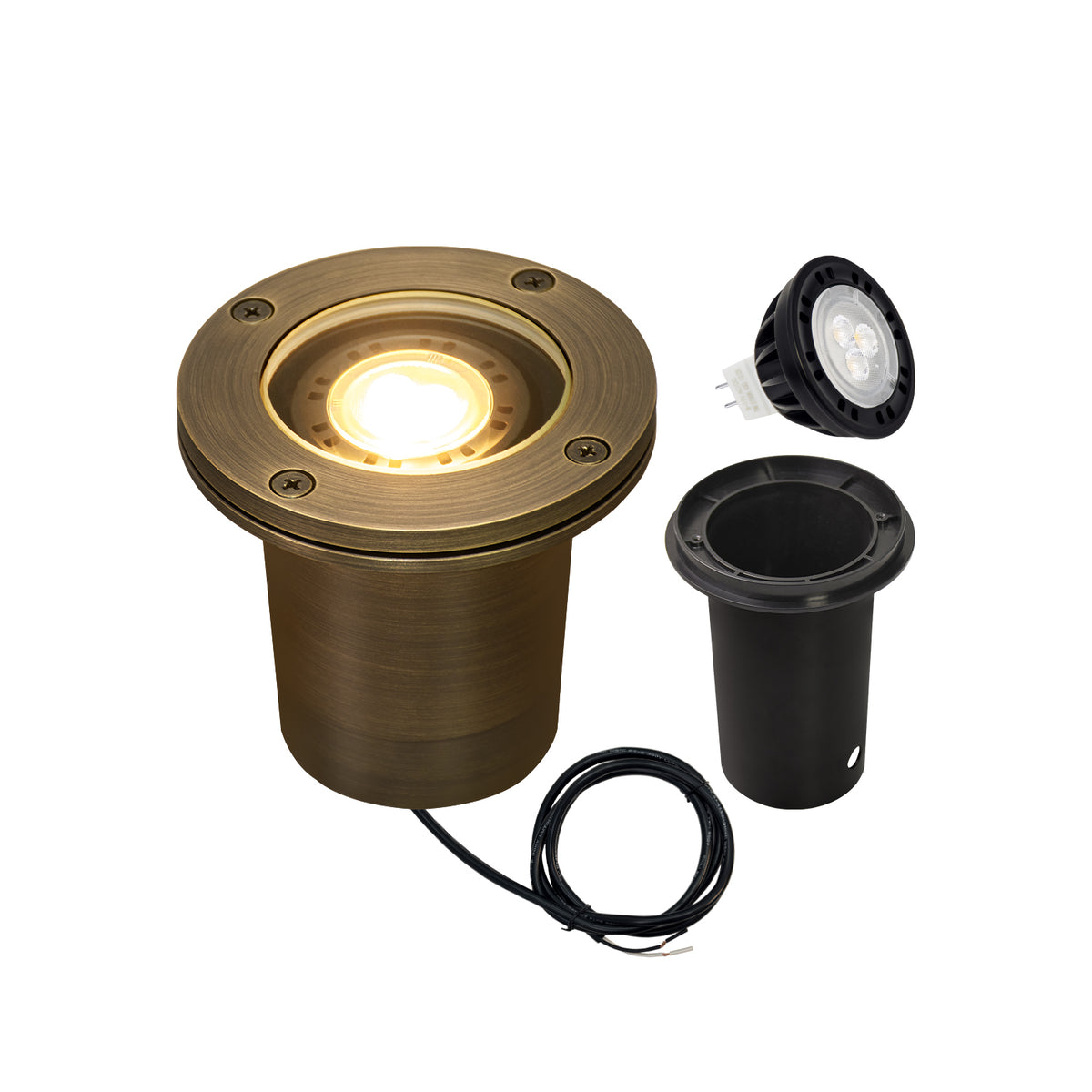

The MALORY MLR-G03 is a premium 12V in-ground well light built with full-body die-cast brass construction for a solid, substantial feel and dependable long-term outdoor use.
Its open flat-top design allows the MR16 beam to project directly upward, making it ideal for highlighting trees, columns, walls, architectural details, and other vertical landscape features. The adjustable GU5.3 bi-pin socket accepts replaceable MR16 lamps, giving you flexibility to choose the wattage, color temperature, and beam angle that best fit your lighting design.
Designed for 9–17V AC/DC low-voltage systems, the MLR-G03 integrates easily with standard landscape lighting setups. Its IP65 outdoor protection helps guard against rain, snow, frost, heat, and everyday landscape conditions.

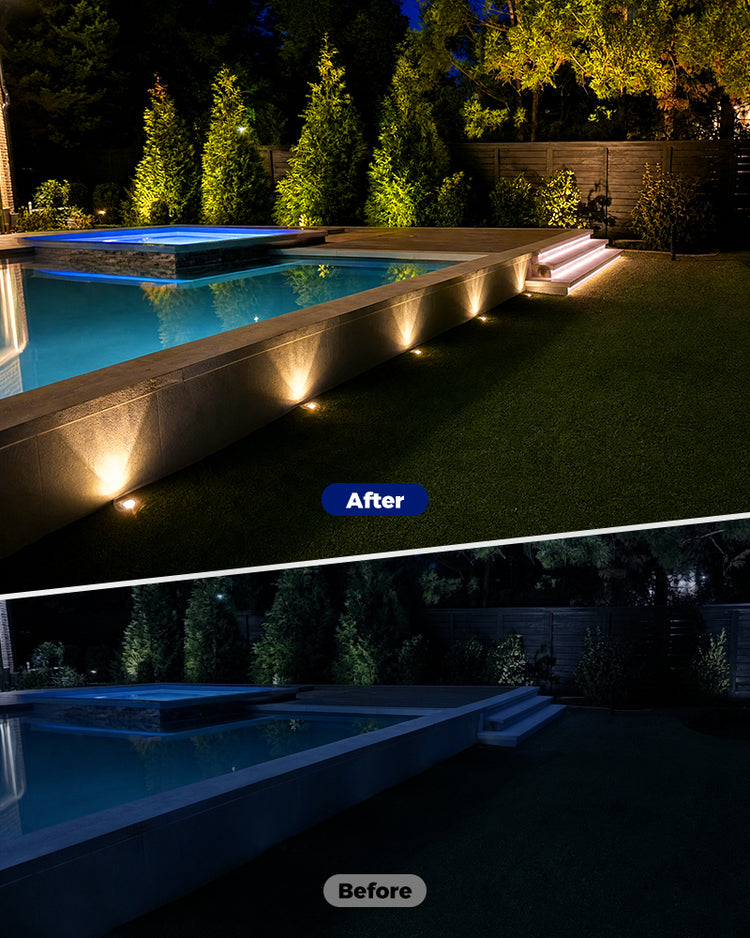

With most of the fixture recessed below grade, the G03 keeps a clean, discreet daytime profile while delivering strong, focused uplighting after dark. MALORY die-cast brass fixtures are backed by a lifetime warranty.
Specification
Specification
Material: Die-cast brass
Finish: Bronze
Input Voltage: 9–17V AC/DC
Water Resistance: IP65 rated
Lead Wire: 40" 18AWG premium copper wire
Lens: Clear flat glass lens
Dimensions: 5.3"DIA x 8.09"H
Weight: 2.1 lb
Socket: Adjustable GU5.3 Bi-pin socket
Replaceable Light Source: Yes
Compatible Bulb Type: MR16 LED bulb

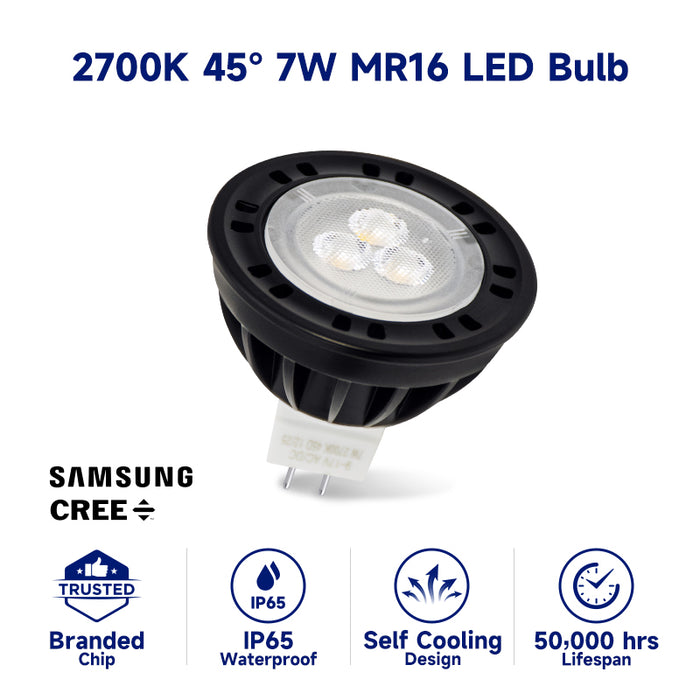

Included Lamp
Lamp Type: MR16 LED bulb
Wattage: 7W
Color Temperature: 2700K
Brightness: 600 lumens
Beam Angle: 45D
CRI: >85
Please Note: Transformer, low voltage direct burial cable, and wire connectors may be sold separately depending on the selected package.
MALORY MLR-G03 Full Die-Cast Brass In-Ground Well Light, 12V Low Vo...
About MLR-G03
-

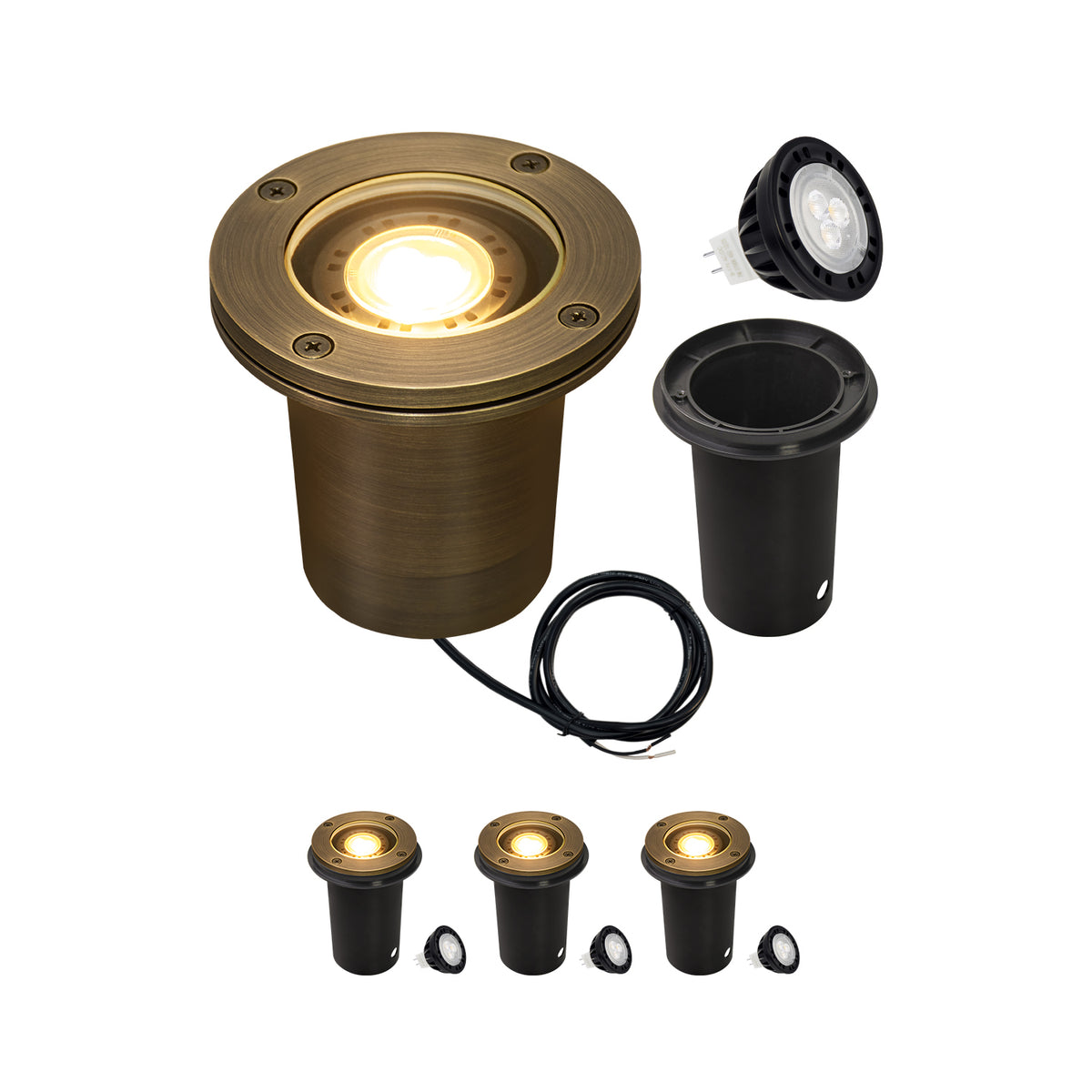

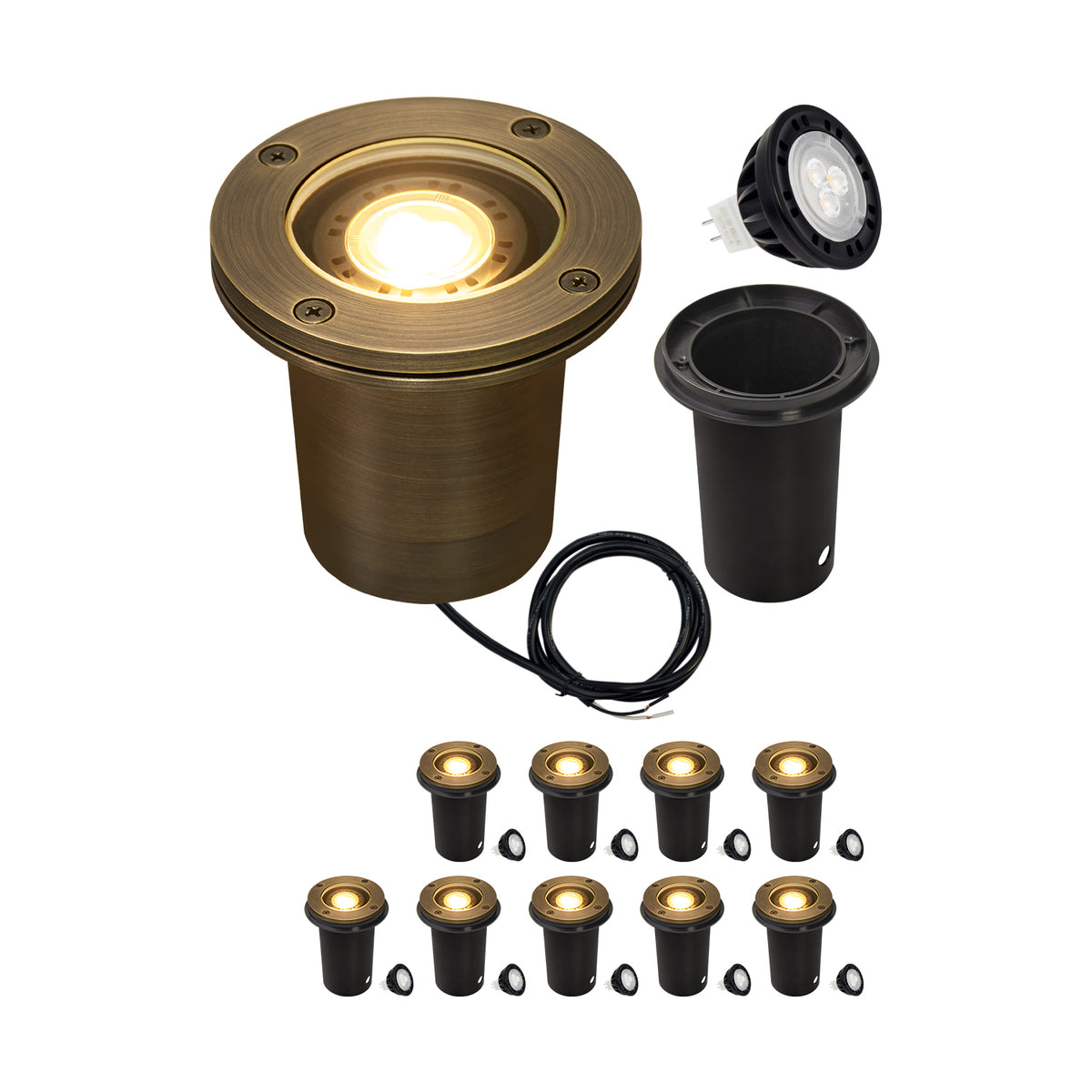

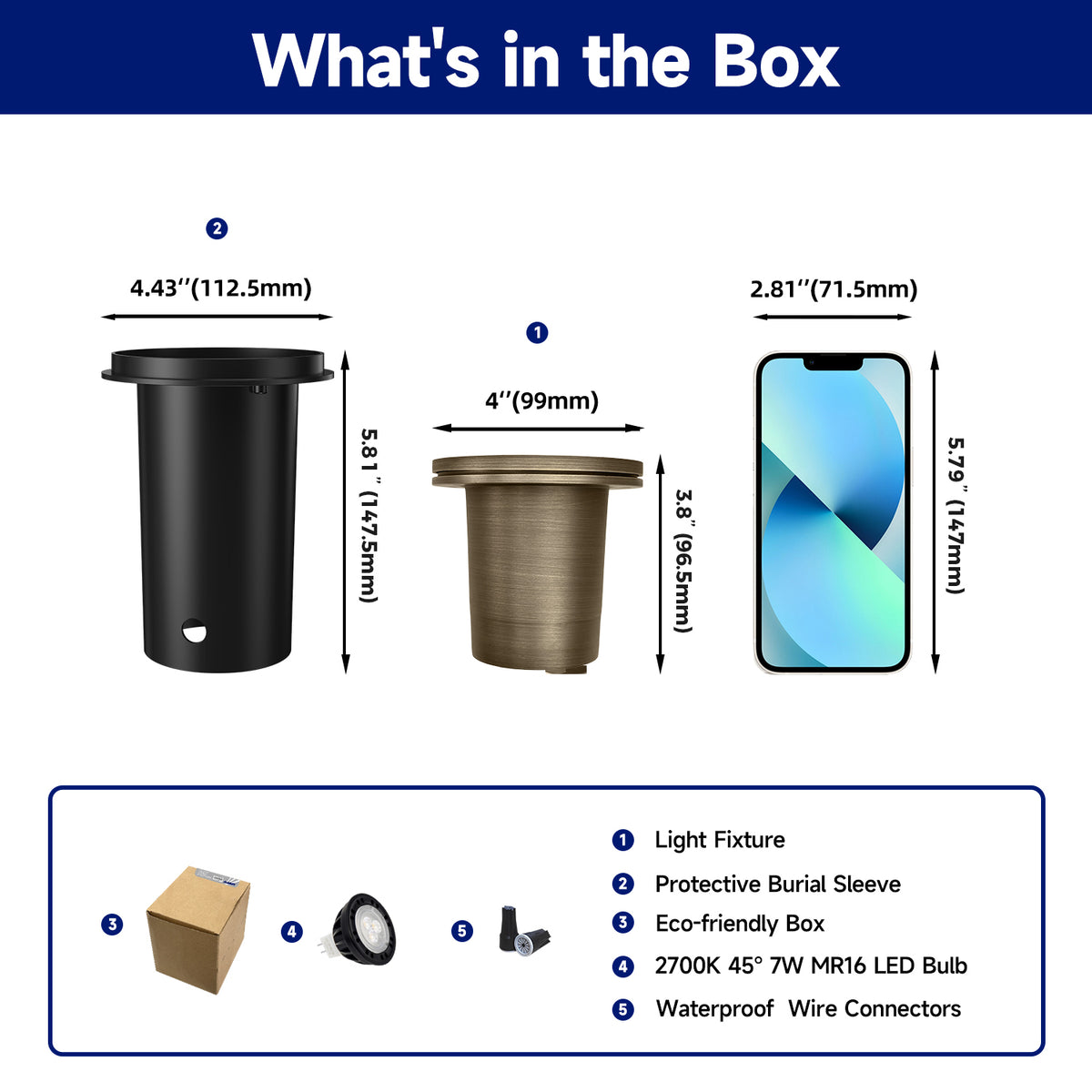

What included in the box
-
How long can I receive it
- We have CA/FL two warehouses for service
- We will arrange delivery nearby
- You will receive the goods in 3-5 work days
- Remote areas may take a little longer
-
How long is the warranty
- Brass Fixture: Lifetime
- LED Bulbs: 5 Years
- Stainless Steel Fixture: 3 Years
- Transformers: Lifetime
How to Choose a Suitable Transformer
Low voltage lighting systems require the use of a transformer to reduce the standard 120 volt power from ordinary household electricity to 12,13,14,and 15 volt needed to power low voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.
To determine the size of transformer needed in a low voltage lighting system, add up the wattage of all fixtures in system and then add 10% for low voltage cable and fixtures connections.
If the total load offixtures is too greateither divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than total wattage of all fixtures in system, that allow you to add more fixtures later.
Product Comparison with In-Ground Lights
| Facet |
Malory MLR-G06 Brass Two-Direction Turret Well Light, Dual-Beam Landscape Uplighting, MR16 Bulb Included View details |
Malory MLR-G07 Brass Three-Direction Turret Well Light, Triple-Beam Landscape Uplighting, MR16 Bulb Included View details |
Malory MLR-G05 Brass One-Direction Turret Well Light, Directional Landscape Uplighting, MR16 Bulb Included View details |
MALORY MLR-G03 Full Die-Cast Brass In-Ground Well Light, 12V Low Voltage Landscape Lighting View details |
Malory MLR-G01 Brass Top In-Ground Well Light, Low Voltage Landscape Uplighting, MR16 Bulb Included View details |
|---|---|---|---|---|---|
| Price | |||||
| Price |
From
$47.99
Unit price
/
Unavailable
|
From
$49.99
Unit price
/
Unavailable
|
From
$49.99
Unit price
/
Unavailable
|
From
$68.00
Unit price
/
Unavailable
|
From
$40.99
Unit price
/
Unavailable
|
FAQ
What countries do you ship to?
What countries do you ship to?
We currently ship to the United States. We have CA/FL two warehouses for service and we will arrange delivery nearby. To enquire about shipping to a different destination, please contact us.
How long will it take to receive my order?
How long will it take to receive my order?
You will receive the goods in 3-5 work days. (Remote areas may take a little longer.)
How do I return a product?
How do I return a product?
Items must be returned within 30 days after receiving your order. Items must be returned in the same condition in which they were received, be unworn/unused, have any tags still attached, and include all the original packaging.
How long will it take to receive my refund?
How long will it take to receive my refund?
Refunds are processed within 7 days from when we receive the item(s).
What is the beam angle?
What is the beam angle?
The beam angle is determined by the bulb used in this fixture. Our light source is 45 degrees.
How does the light connect to the lead wire?
How does the light connect to the lead wire?
Our light fixture with 6-foot wire and 2 connectors, you can strip part of the lead wire insulation and connect the wires from the light fixture to the lead wire.
