In our years of field experience, Malory Lighting has identified a critical truth: approximately 90% of all low-voltage landscape lighting failures are not caused by the fixtures themselves, but by faulty wire connections. Whether dealing with acidic soil, seasonal frost heave, or coastal salt spray, standard electrical connections often succumb to moisture intrusion and corrosion. To ensure a 10-year, maintenance-free lifespan, Malory Lighting insists on a specific industry-standard protocol.
The "Insurance Policy": Grease-Filled Wire Nuts

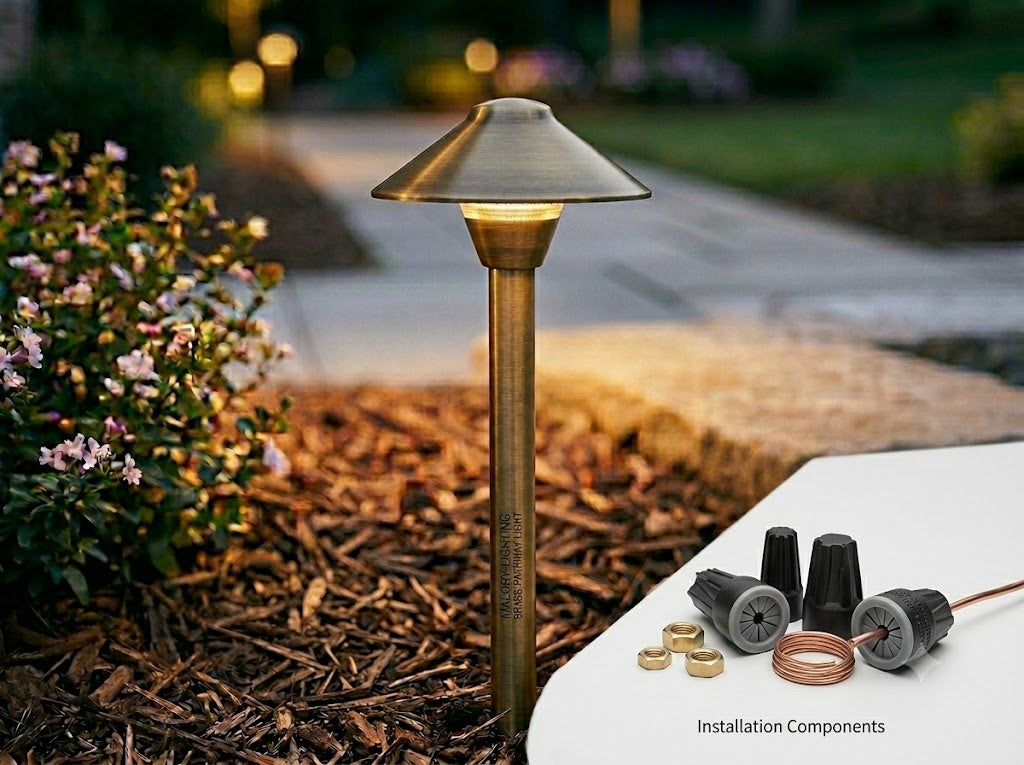

The most effective way to combat corrosion is by using dielectric grease-filled waterproof wire nuts, as shown below
1.1 How It Works
These connectors are pre-filled with a special silicone-based grease that encapsulates the copper wires upon tightening, creating a permanent, watertight barrier that prevents oxidation.
1.2 Why It Matters
This grease is not just a sealant; it is a dynamic insulator that adapts to temperature changes, ensuring the connection remains hermetically sealed regardless of the weather.
2. Pro-Installation Technique
To achieve an industrial-grade connection using the connectors , follow this "Malory Gold Standard" procedure:
2.1 No Pre-Twisting Required
Unlike traditional indoor wire nuts, you do not need to pre-twist the copper wires. Simply align the wires and insert them into the connector; the internal spring mechanism will secure them firmly.
2.2 The "Full Seal" Signal
When tightening, ensure the wires are fully inserted. A small amount of grease overflowing from the base is a sign of a perfect seal—do not wipe this away, as it provides an additional layer of protection.
2.3 Stress Relief
While these connectors are highly secure, always ensure there is a small amount of slack (a "drip loop") in the cable to prevent tension from pulling on the joint.
3. Diagnosing Connection Failures
If your system begins to flicker or dim, the connections are your first point of inspection.
3.1 Visual Check
Inspect the wire joints for any signs of copper oxidation (green or black discoloration).
3.2 Voltage Testing
Use a multimeter to check the voltage at the fixture. If you detect a voltage drop greater than 0.5V across a connection, the joint is compromised and must be replaced.
4. Conclusion: Connection is Longevity
In landscape lighting, the quality of your connections dictates the longevity of your entire system. By utilizing the professional-grade components, you are not just making a repair; you are building an asset that will withstand the elements for decades.
Next Steps:
Ready to elevate your system design? Learn more about creating dramatic depth with light in our design guide: [Lighting Layout Secrets: Trees & Architectural Features].
Master the Basics:
For a complete overview of our professional installation standards, revisit our knowledge hub: [The Ultimate Guide to Low-Voltage Landscape Lighting].
5. Frequently Asked Questions (FAQ)
Q: Can I use electrical tape instead of grease-filled wire nuts to save money?
A: No. Electrical tape relies on adhesive that degrades rapidly when exposed to heat, moisture, and soil acidity. It cannot create a hermetic seal and will eventually allow moisture to "wick" into the wire, leading to corrosion. Grease-filled connectors are a one-time investment that prevents expensive repairs later.
Q: Is it okay if the grease spills out when I tighten the connector?
A: Absolutely. In fact, a small amount of grease overflowing from the base is the best visual indicator of a perfect seal. Do not wipe it away; this excess grease acts as a protective shield against moisture and soil contaminants.
Q: How do I know if my system has a voltage drop issue?
A: A multimeter is your best friend. If your transformer outputs 12V but the fixture at the end of the line receives less than 10.5V, you likely have a voltage drop caused by undersized wire or, more commonly, a high-resistance connection. Aim for a voltage drop of no more than 0.5V across any single connection.
Q: Can these grease-filled connectors be reused if I need to move a light?
A: We strongly advise against it. Once the connector is tightened, the internal spring mechanism creates a permanent bond, and the grease is displaced. For the sake of long-term system reliability, always use a fresh connector whenever you modify or repair a joint.
Q: Does soil type affect how I should install these connections?
A: Yes. If you have highly acidic or clay-heavy soil, moisture retention is higher. In these conditions, ensuring you have a proper "drip loop" and using a slightly thicker layer of bedding sand around your connections is a professional best practice to ensure the environment around the wire nut remains as dry as possible.
